C-arms

Mobile surgical C-arms with a flat panel detector, for fluoroscopy and digital radiography in the operating theatre.

Equipment for C-arms

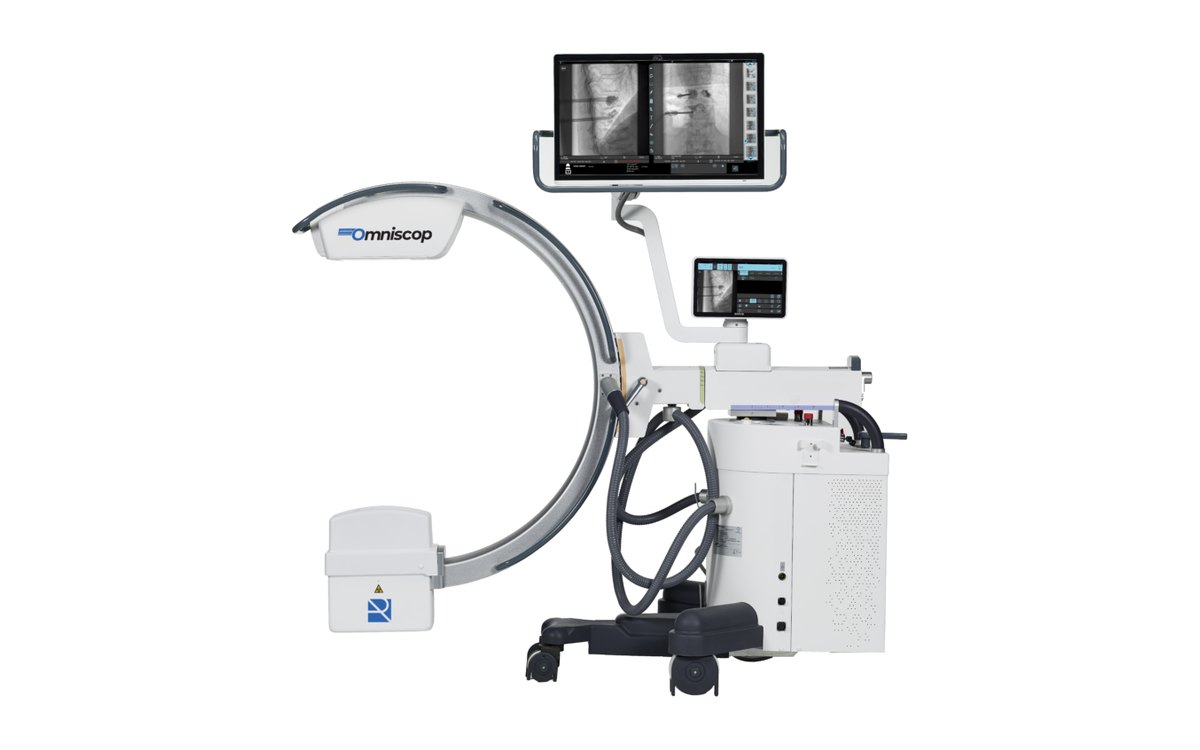

Radiología SA Radiología Omniscop FPS

Digital C-arm

Single unit system: everything built into the arm, with no monitor cart
27 inch medical multi touch monitor on an articulated arm, adjustable in angle and height
Live and reference image on the same screen
21 x 21 cm flat panel detector, high sensitivity and free of image distortion
Multi touch console mounted on the arm: parameters are controlled from either side
160 degree orbital rotation and more than 275 degree angular rotation
450 mm of vertical travel
Removable 8:1 grid, for low dose and paediatric procedures
Pulsed fluoroscopy and digital radiography direct to the detector
Fluoroscopy time is not restricted: thermal control lets the examination finish
X-ray emission from a footswitch or a multifunction hand switch

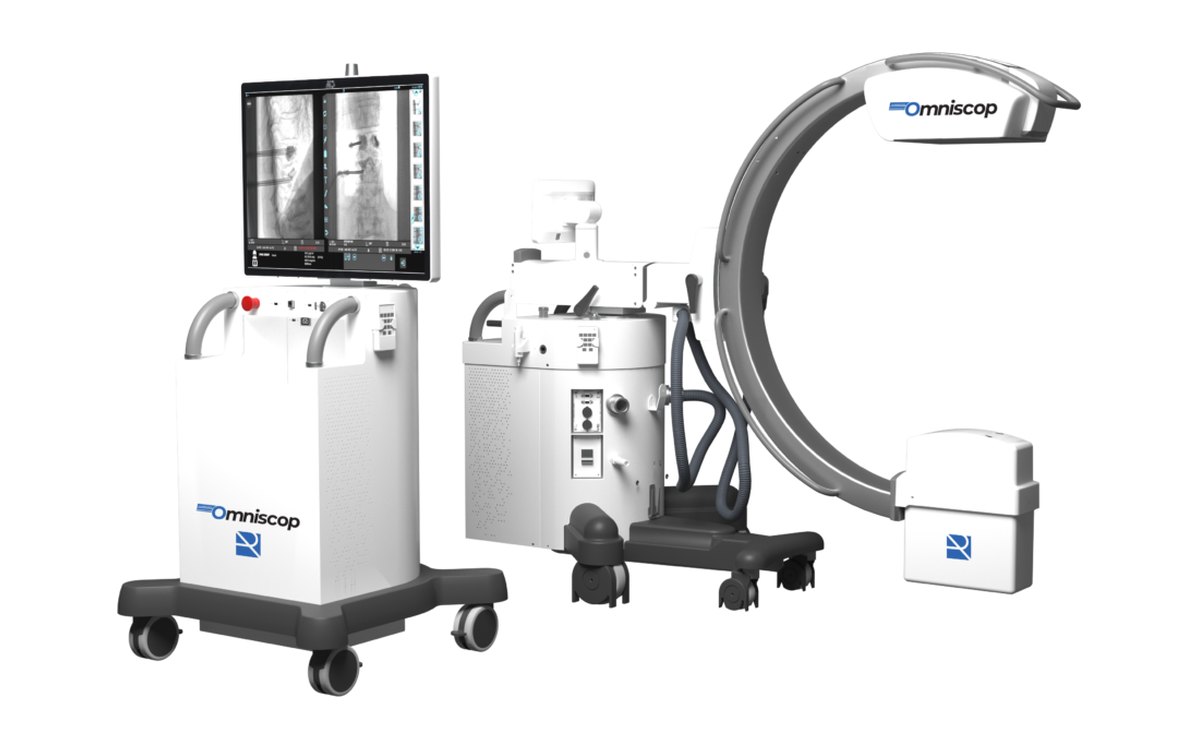

Radiología SA Radiología Omniscop FP

Digital C-arm with DSA

20 kW generator, with modulated power pulsed emission
30 x 30 cm flat panel detector with 3.8 million pixels, in aSi or CMOS technology
Option of a 21 x 21 cm detector with 1.8 million pixels
Digital subtraction angiography and roadmap, alongside fluoroscopy and radiography
Viewing station with two 21.5 inch touch monitors, 1920 x 1920 matrix, in portrait orientation
Large image on top and thumbnails below, to review without losing the main view
160 degree orbital rotation and more than 275 degree angular rotation
450 mm of vertical travel
Removable 8:1 grid, for low dose and paediatric procedures
Built from light alloy, carbon fibre and polymers, with soft bumpers at the base
Easy lift front wheels, to get over thresholds
Colour coded brakes and axes, for fast repositioning
