Surgery

Anaesthesia machines and workstations for operating theatres.

Equipment for Surgery

Northern MeditecNorthern Atlas N5
Anesthesia machine

Northern Atlas N5

  • 12 inch TFT LCD touch screen, 800 x 600, with up to three configurable waveforms
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • Electronic flowmeter as standard, with O2, N2O and air supply
  • Metal and PPSU circuit, autoclavable at 134 degrees, with a built in heater
  • CO2 absorber operated one handed and changed without stopping the case, with an online canister detector
  • Fresh gas, compliance and leak compensation
  • Dual position Selectatec bar for the vaporiser, with a Dräger, Penlon or Northern option
  • Stainless steel work surface with rails on both sides and LED lighting
  • P-V, P-F and F-V spirometry loops, with a reference loop
Learn more
Northern MeditecNorthern Atlas N7
Anesthesia machine

Northern Atlas N7

  • 15.6 inch TFT LED touch screen, 1366 x 768, with a 17 or 19 inch option
  • Built in patient monitor and a rotating support arm with adjustable angle
  • Electronically controlled gas mixer for O2, N2O and air
  • Auto FiO2: one key adjusts oxygen flow to hold the inspired fraction
  • Automatic switchover if a gas runs short, O2 to air and N2O to O2
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • O2 flush from an electronic button on screen or a mechanical button on the work surface
  • Metal circuit with upward or downward bellows, autoclavable at 134 degrees
  • Up to four waveforms on the same screen, colour coded by parameter
  • Position detection for the circuit and the soda lime canister, with an alarm
Learn more
HeyerHeyer Aeon 8700A
Anesthesia machine

Heyer Aeon 8700A

  • 12.1 inch colour TFT LCD touch screen, with parameters, monitored data and alert messages on the same page
  • Dual display electronic flowmeters, with a mechanical flowmeter as backup
  • Tidal volume from 20 ml, for neonatal, paediatric and adult patients
  • PCV-VG and SIMV-PC modes, plus IPPV, PCV, SIMV-VC and pressure support with backup apnoea
  • Low flow and minimal flow anaesthesia
  • Two layer breathing system with a high capacity CO2 absorber, fully autoclavable
  • Compliance, leak, fresh gas and altitude compensation
  • Adjustable APL valve with quick release and one step bag or ventilator switching
  • LED lighting with shadow reduction and a folding table that widens the work area
  • CE marked
Learn more
EsheroEshero AM852 Pro
Anesthesia machine

Eshero AM852 Pro

  • 15.6 inch colour touch screen, with a Spanish menu
  • Electronic flowmeters for O2, N2O and air, plus auxiliary O2 and air supply flowmeters
  • Dual drive gas, on oxygen and on air
  • Cardiopulmonary bypass function, activated in manual mode
  • Recruitment manoeuvre
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • Eight ventilation modes, including PCV-VG and SIMV-VG
  • Three waveforms and two loops on the same screen
  • O2 flush from 35 to 75 l/min
Learn more
EsheroEshero AM851 Pro
Anesthesia machine

Eshero AM851 Pro

  • 15.6 inch colour touch screen, with a Spanish menu
  • Semi electronic flowmeters for O2, N2O and air, plus an auxiliary O2 supply flowmeter
  • Cardiopulmonary bypass function, activated in manual mode
  • Recruitment manoeuvre
  • Tidal volume from 15 to 1500 ml, for neonatal, paediatric and adult patients
  • Eight ventilation modes, including PCV-VG and SIMV-VG
  • Three waveforms and two loops on the same screen
  • O2 flush from 35 to 75 l/min
Learn more

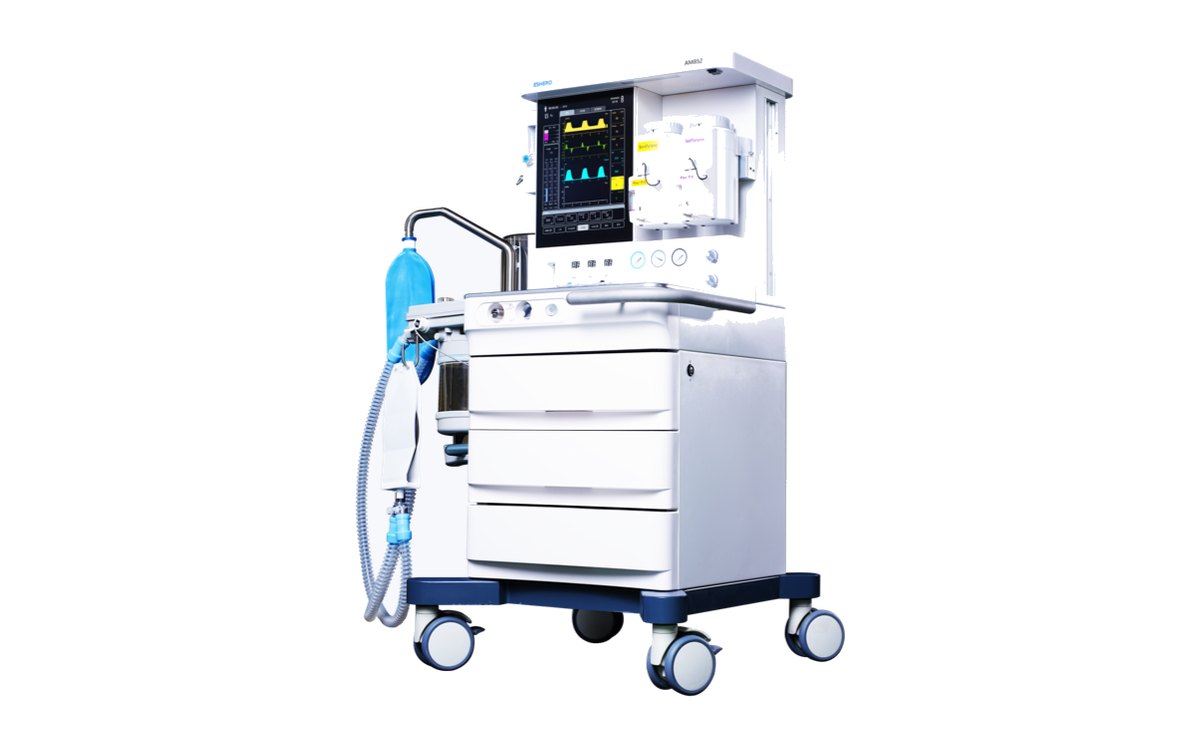

EsheroEshero AM852
Anesthesia machine

Eshero AM852

  • 12.1 inch colour touch screen, with a Spanish menu
  • Semi electronic flowmeters for O2, N2O and air, plus an auxiliary O2 supply flowmeter
  • Dual drive gas, on oxygen and on air
  • Tidal volume from 15 to 1500 ml, for neonatal, paediatric and adult patients
  • Six ventilation modes: VCV, PCV, SIMV-VC, SIMV-PC, PSV and manual
  • Three waveforms and two loops on the same screen
  • O2 flush from 25 to 75 l/min
Learn more

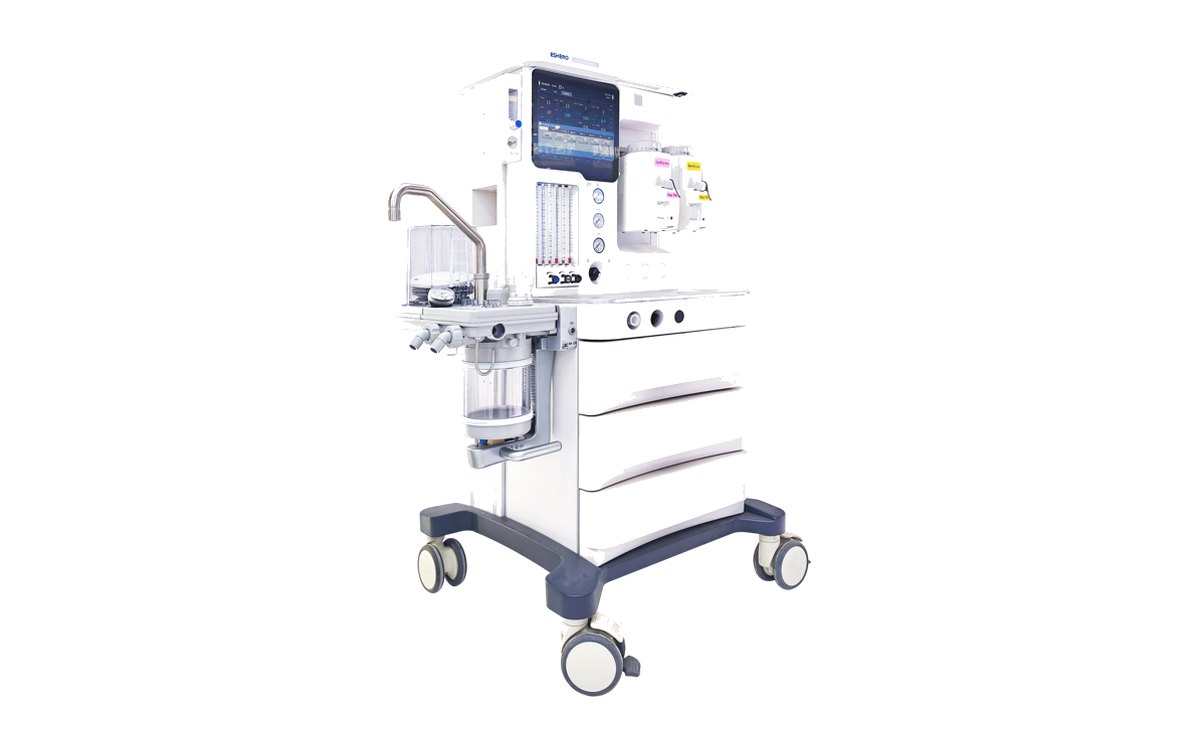

EsheroEshero AM834
Anesthesia machine

Eshero AM834

  • 12.1 inch high definition colour touch screen
  • High precision six tube mechanical flowmeters, with backlighting
  • Modular breathing circuit that comes apart by hand
  • Oxygen concentration monitoring as standard
  • Electronic PEEP as standard
  • Tidal volume from 20 to 1500 ml, for paediatric and adult patients
  • Two waveforms and one loop on the same screen
Learn more

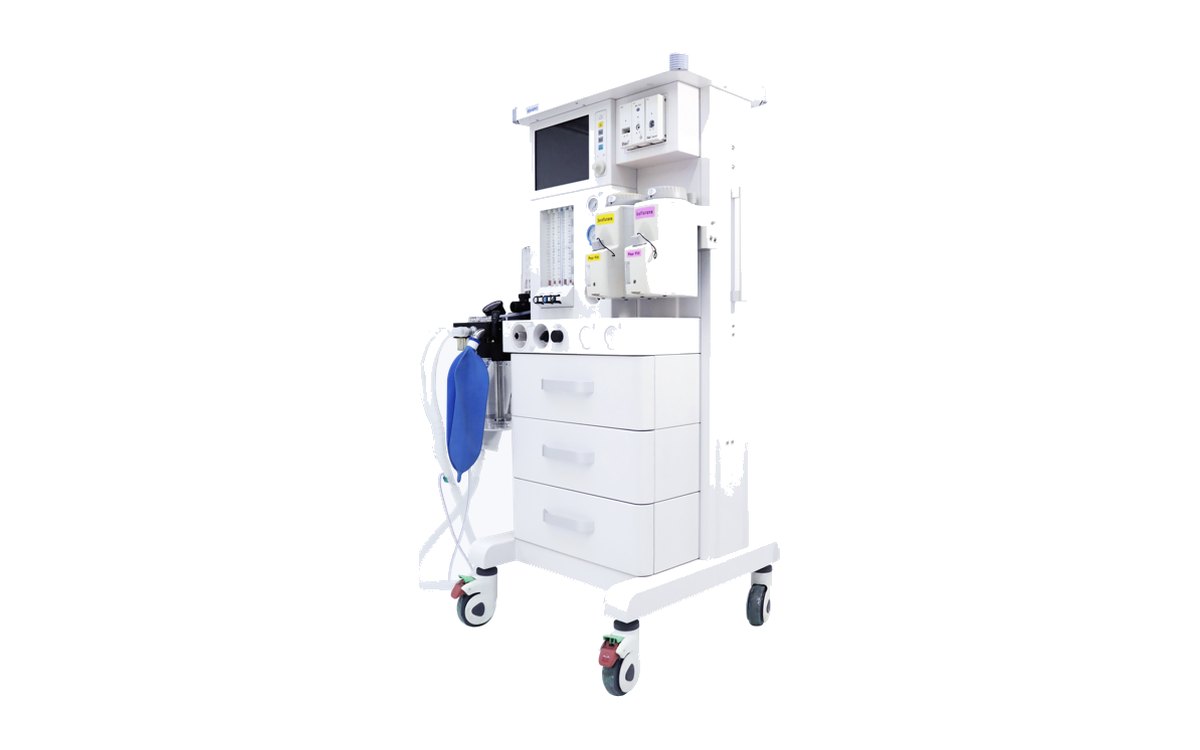

EsheroEshero AM832
Anesthesia machine

Eshero AM832

  • 10 inch high definition colour LCD touch screen
  • Built in overhead lighting
  • Modular breathing circuit that comes apart by hand
  • Electronic PEEP as standard
  • Tidal volume from 20 to 1500 ml, for paediatric and adult patients
  • Pressure against time and flow against time waveforms in real time
Learn more

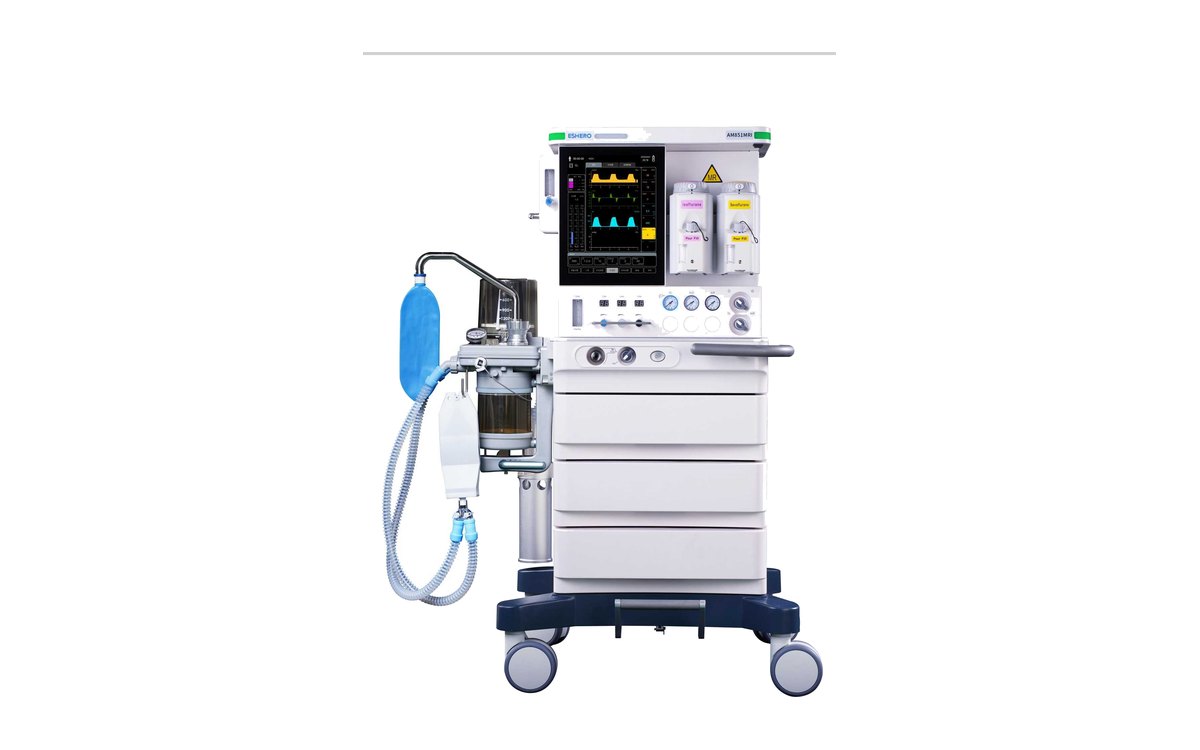

EsheroEshero AM851 MRI
Anaesthesia machine for magnetic resonance

Eshero AM851 MRI

  • Built to work inside the magnetic resonance room
  • 15.6 inch colour touch screen, with a Spanish menu
  • Semi electronic flowmeters for O2, N2O and air, plus an auxiliary O2 supply flowmeter
  • Cardiopulmonary bypass function, activated in manual mode
  • Recruitment manoeuvre
  • Tidal volume from 15 to 1500 ml, for neonatal, paediatric and adult patients
  • Eight ventilation modes, including PCV-VG and SIMV-VG
  • O2 flush from 35 to 75 l/min
Learn more
