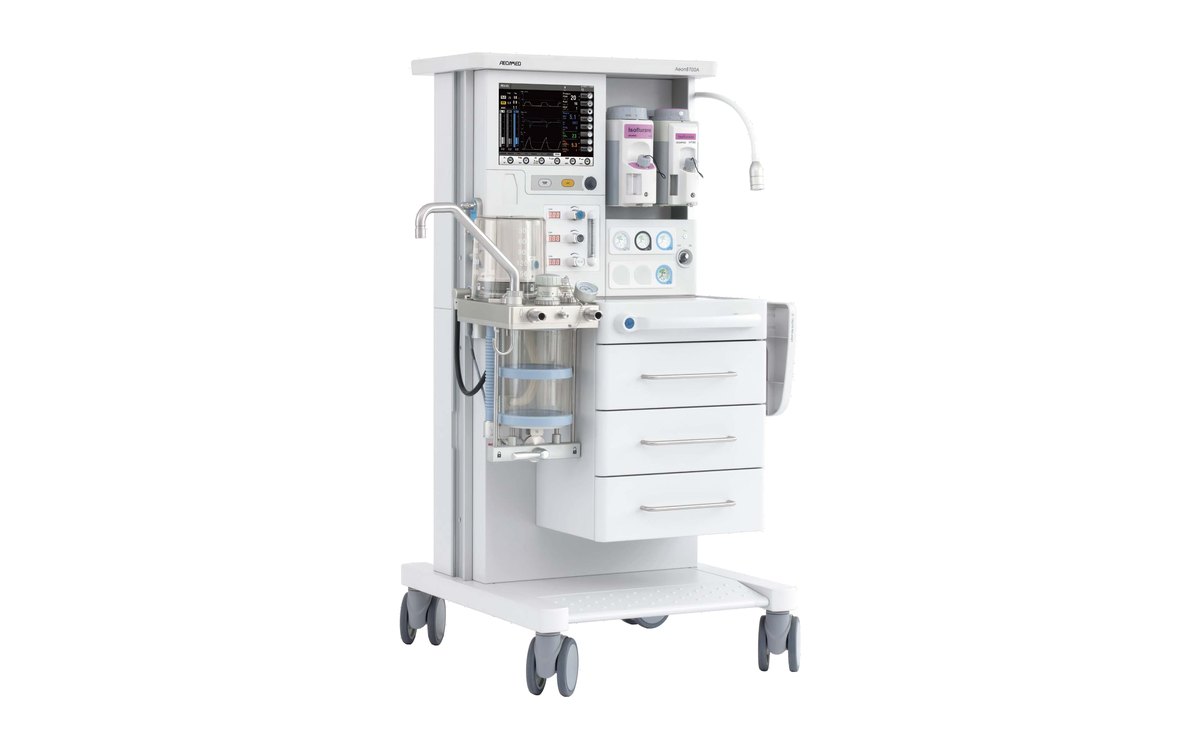

Heyer Aeon 8700A

Anesthesia machine

Manufacturer represented
SurgeryCategory
Heyer Aeon 8700A
Request a quotation
  • Manufacturer represented by Quirurgil
  • Our own technical service, present in five cities
  • Original spare parts and engineers trained by the manufacturer

Anaesthesia machine with an electronically driven, pneumatically directed ventilator, with dual display electronic flowmeters: the LCD screen and virtual flow tubes, backed by a mechanical flowmeter that watches total volume. Tidal volume starts at 20 millilitres, so it covers infants through adults, and it supports low flow and minimal flow anaesthesia.

What it brings

  • 12.1 inch colour TFT LCD touch screen, with parameters, monitored data and alert messages on the same page
  • Dual display electronic flowmeters, with a mechanical flowmeter as backup
  • Tidal volume from 20 ml, for neonatal, paediatric and adult patients
  • PCV-VG and SIMV-PC modes, plus IPPV, PCV, SIMV-VC and pressure support with backup apnoea
  • Low flow and minimal flow anaesthesia
  • Two layer breathing system with a high capacity CO2 absorber, fully autoclavable
  • Compliance, leak, fresh gas and altitude compensation
  • Adjustable APL valve with quick release and one step bag or ventilator switching
  • LED lighting with shadow reduction and a folding table that widens the work area
  • CE marked

Where it is used

  • Operating room
  • Paediatric surgery
  • Day surgery

Specifications

Display12.1 inch colour TFT touch screen
Ventilation modesManual or spontaneous, IPPV, PCV, PCV-VG, SIMV-VC, SIMV-PC and pressure support with backup apnoea
Tidal volume20 to 1500 ml in volume control
Respiratory rate2 to 100 per minute
PEEPOff, or 3 to 30 cmH2O
Inspiration to expiration ratio4:1 to 1:8
Gas supplyO2, N2O and air, 280 to 600 kPa. O2 and N2O 0.05 to 10 l/min, air 0.05 to 12 l/min
O2 flush25 to 75 l/min
AgentsHalothane, enflurane, isoflurane and sevoflurane, on a Selectatec mount with interlock
CO2 absorber3 litres in a double canister or 1.8 litres in a single canister
Battery24 V, 4.0 Ah, at least 120 minutes
Dimensions and weight140.3 x 70.4 x 75 cm high, wide and deep. 100 kg with the trolley
OptionsCO2 and AG gas monitoring, paramagnetic oxygen, ACGO, AGSS, CO2 bypass and cylinder yokes

Aeonmed no longer publishes the Aeon 8700A on its site: it now lists the 8800A, 8600A, 8300A and 7200A. The information comes from the manufacturer's brochure.

Request a quotation
Back to Surgery
Keep exploring

Other equipment in Surgery

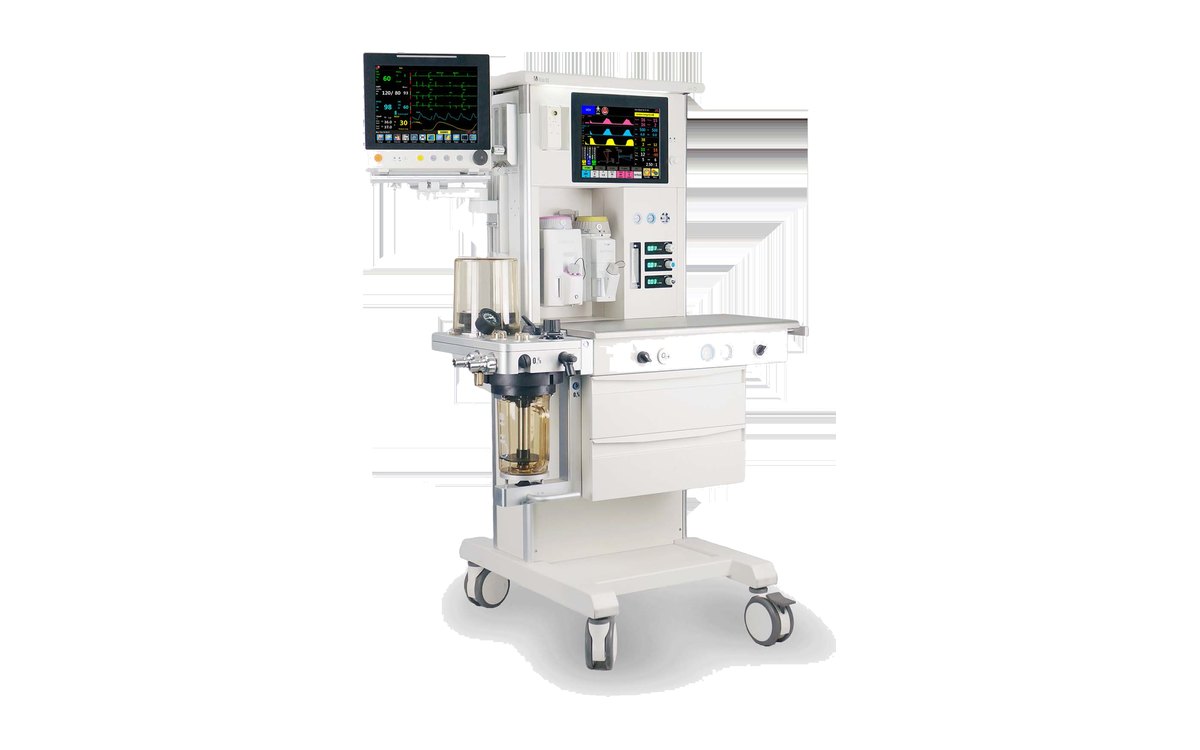

Northern MeditecNorthern Atlas N5
Anesthesia machine

Northern Atlas N5

  • 12 inch TFT LCD touch screen, 800 x 600, with up to three configurable waveforms
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • Electronic flowmeter as standard, with O2, N2O and air supply
  • Metal and PPSU circuit, autoclavable at 134 degrees, with a built in heater
  • CO2 absorber operated one handed and changed without stopping the case, with an online canister detector
  • Fresh gas, compliance and leak compensation
  • Dual position Selectatec bar for the vaporiser, with a Dräger, Penlon or Northern option
  • Stainless steel work surface with rails on both sides and LED lighting
  • P-V, P-F and F-V spirometry loops, with a reference loop
Learn more

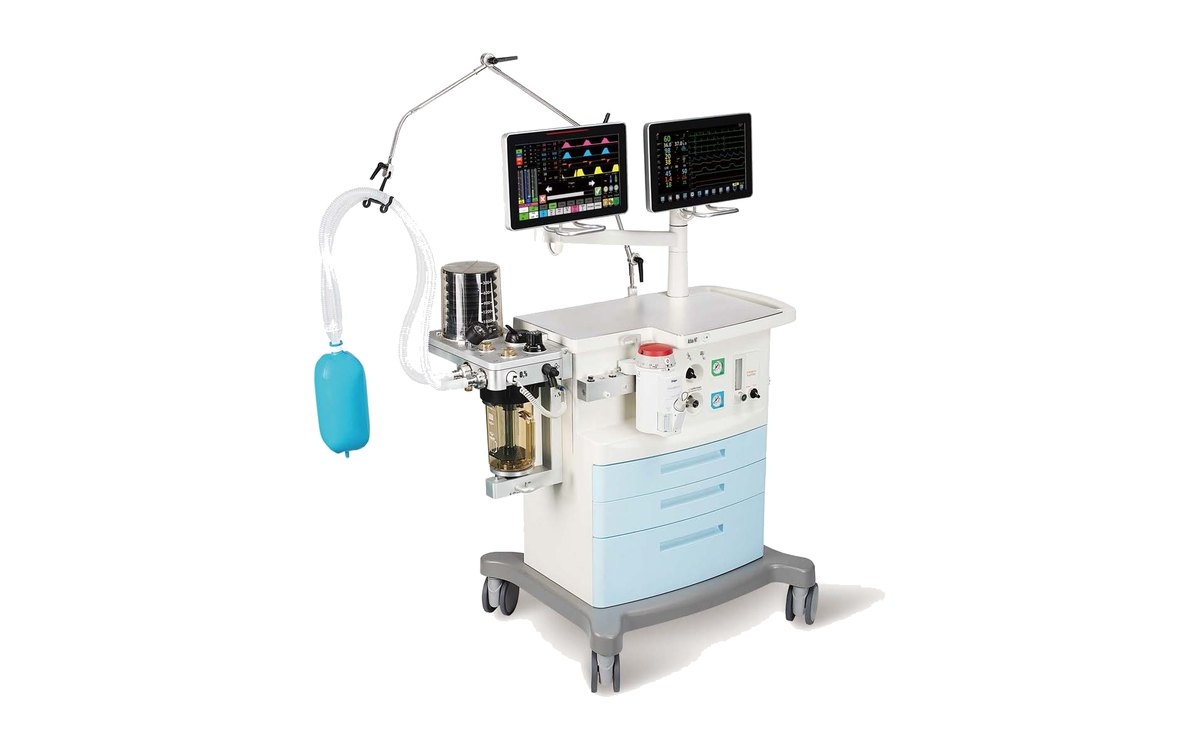

Northern MeditecNorthern Atlas N7
Anesthesia machine

Northern Atlas N7

  • 15.6 inch TFT LED touch screen, 1366 x 768, with a 17 or 19 inch option
  • Built in patient monitor and a rotating support arm with adjustable angle
  • Electronically controlled gas mixer for O2, N2O and air
  • Auto FiO2: one key adjusts oxygen flow to hold the inspired fraction
  • Automatic switchover if a gas runs short, O2 to air and N2O to O2
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • O2 flush from an electronic button on screen or a mechanical button on the work surface
  • Metal circuit with upward or downward bellows, autoclavable at 134 degrees
  • Up to four waveforms on the same screen, colour coded by parameter
  • Position detection for the circuit and the soda lime canister, with an alarm
Learn more

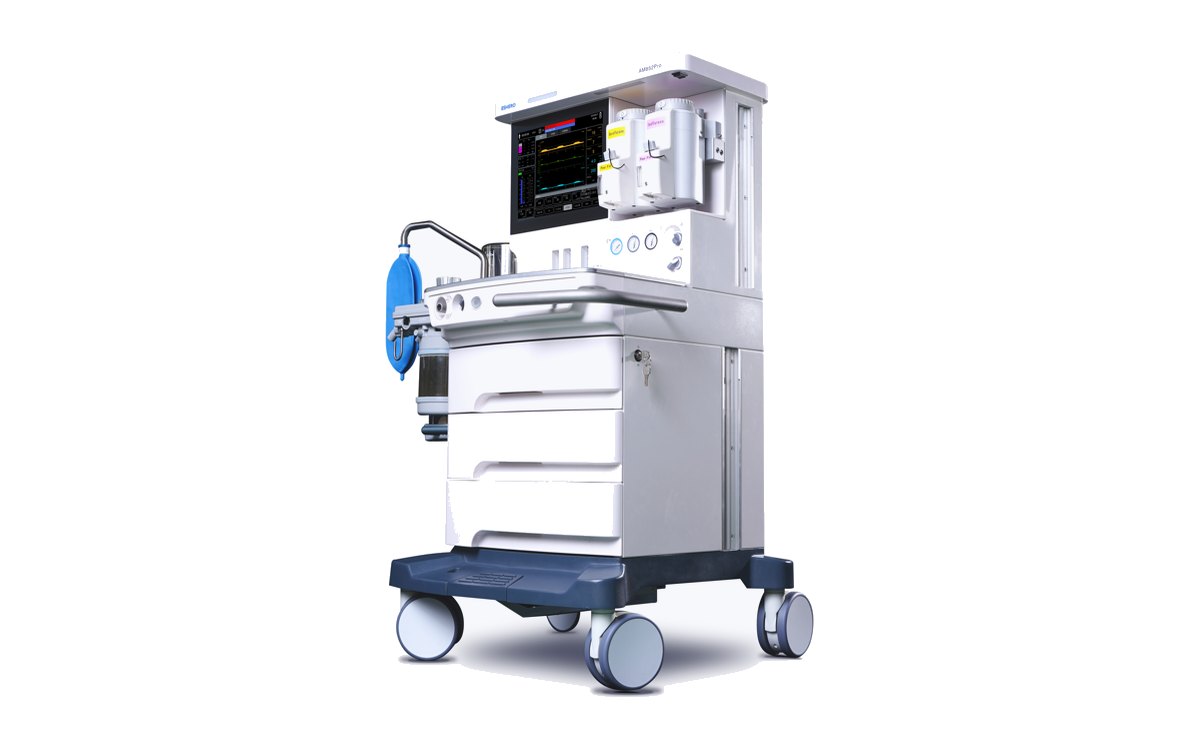

EsheroEshero AM852 Pro
Anesthesia machine

Eshero AM852 Pro

  • 15.6 inch colour touch screen, with a Spanish menu
  • Electronic flowmeters for O2, N2O and air, plus auxiliary O2 and air supply flowmeters
  • Dual drive gas, on oxygen and on air
  • Cardiopulmonary bypass function, activated in manual mode
  • Recruitment manoeuvre
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • Eight ventilation modes, including PCV-VG and SIMV-VG
  • Three waveforms and two loops on the same screen
  • O2 flush from 35 to 75 l/min
Learn more

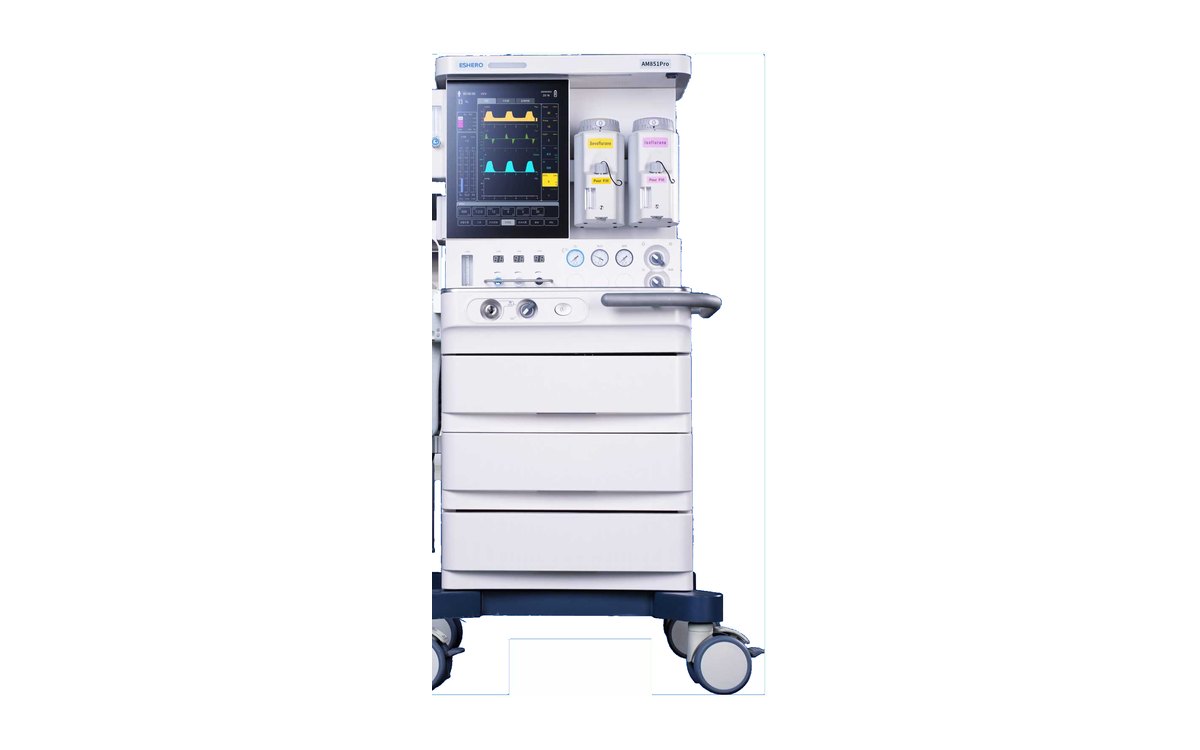

EsheroEshero AM851 Pro
