Computed tomography

CT scanners from 16 to 128 slices and cone beam CT for extremities.

Equipment for Computed tomography

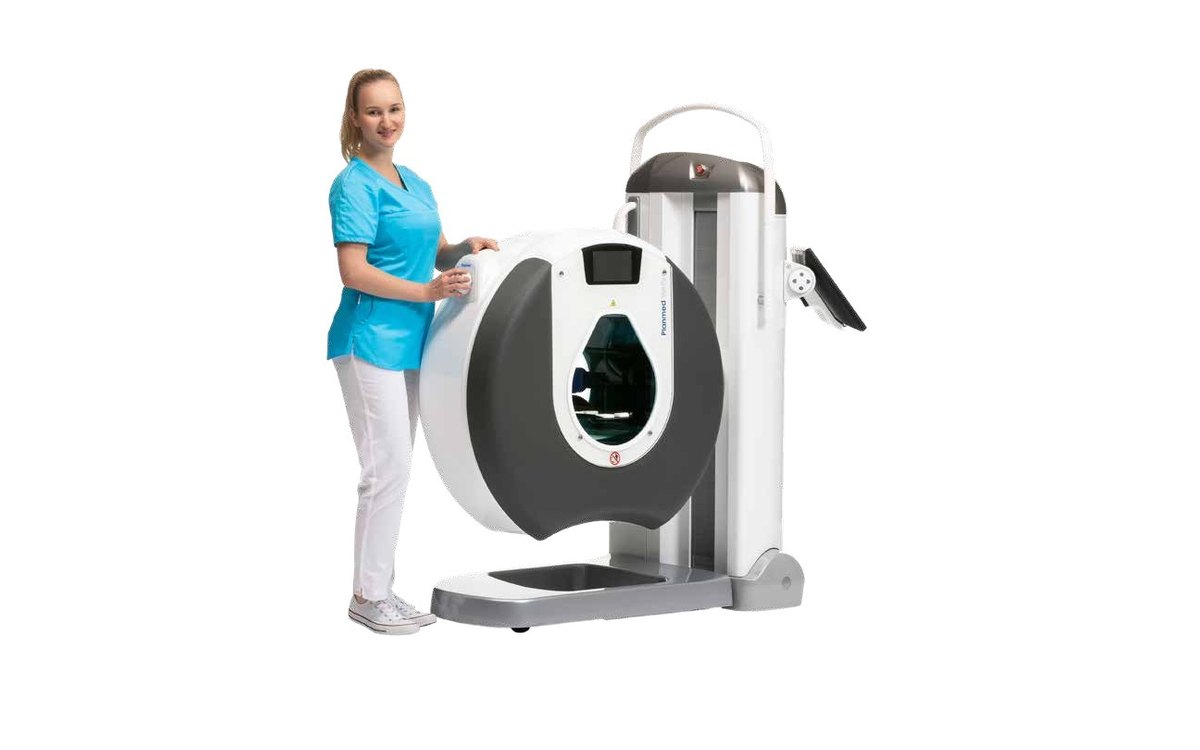

PlanmedPlanmed Verity
Cone beam CT

Planmed Verity

  • 3D weight-bearing imaging, in the patient's natural position
  • Solves overlapping structures and projection differences
  • Algorithms that correct movement, reduce artefacts and remove noise
  • Integrated touchscreen workstation to acquire, reconstruct and manage studies
  • Motorised gantry with adjustable height and tilt
  • Compact, mobile unit that moves between hospital departments
Learn more

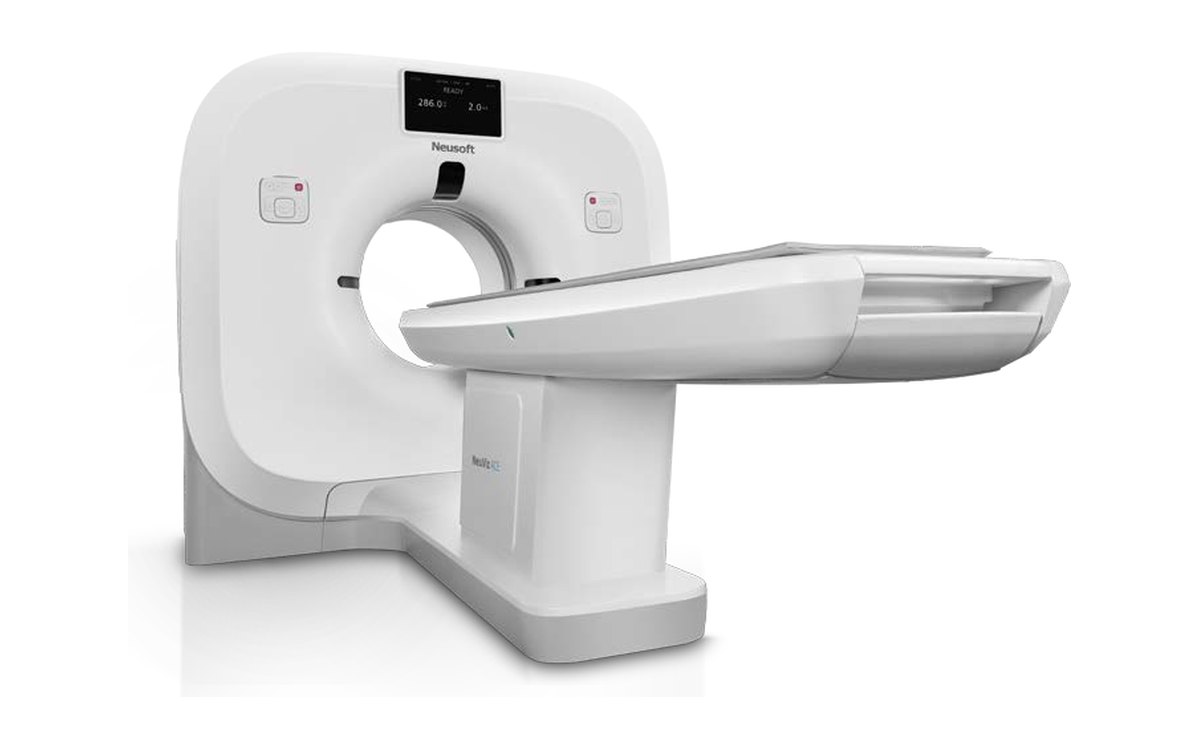

NeusoftNeusoft NeuViz ACE SP
32 slice CT scanner

Neusoft NeuViz ACE SP

  • 32 slices acquired per rotation and up to 120 reconstructed
  • Micro-STAR detector with 99.99 percent conversion efficiency, inherited from the high end range
  • 60 kV technique, the lowest voltage in the series, for reduced dose studies
  • 650 mm gantry aperture and digital tilt of plus or minus 30 degrees
  • 0.71 second rotation in the fastest mode
  • Reconstruction of up to 20 images per second, with a matrix of up to 1024 x 1024
  • Digital flying focal spot on the Z axis, for greater coverage
  • 3.5 MHU tube with an insulating layer that preserves heat and shortens warm up
  • Table rated to 205 kg on the height adjustable version
  • Two internal and four external laser localisers, accurate to 2 mm
  • Display on the gantry edge with patient data, system status and the exposure countdown
Learn more

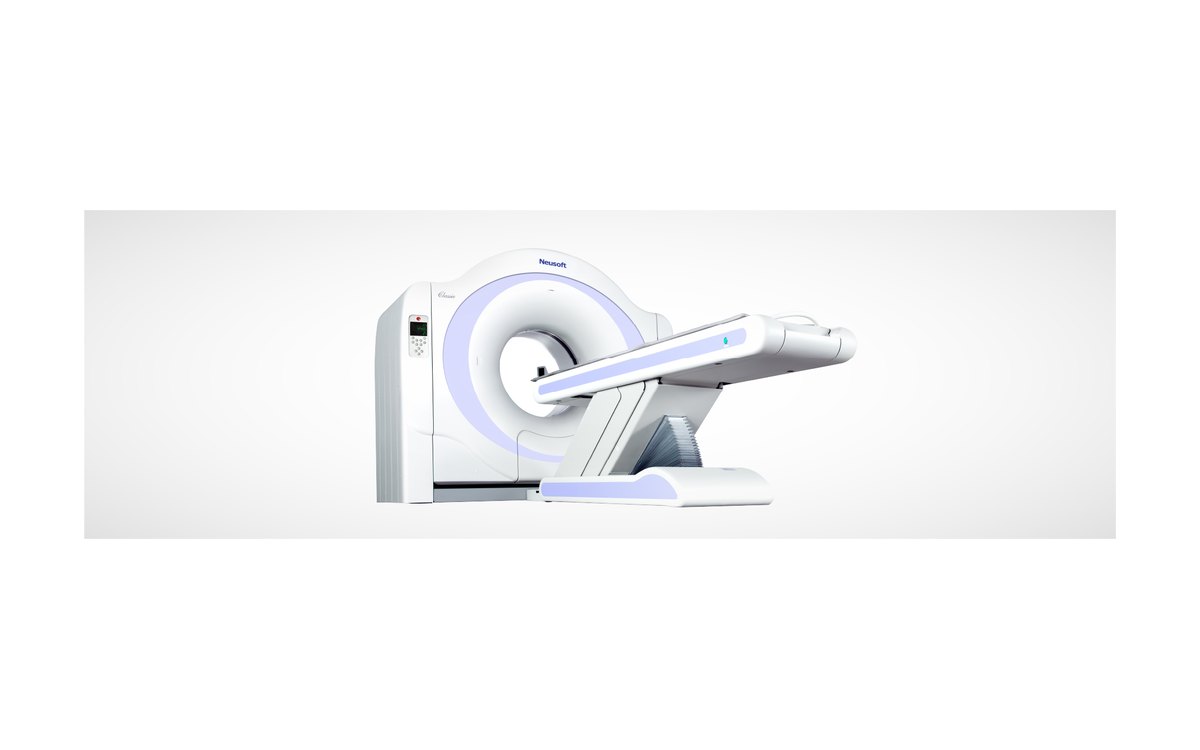

NeusoftNeusoft NeuViz 16 Classic
16 slice CT scanner

Neusoft NeuViz 16 Classic

  • Built on the 64 slice CT platform
  • 4 MHU tube, which allows longer continuous scan times
  • 32 row detector, with high X-ray conversion and low noise
  • Wide submillimetre detector coverage, which shortens scan time and dose
  • 70 cm aperture, which takes a wider range of patients
  • Mechanical gantry tilt of plus and minus 30 degrees
  • Vertically moving couch, so a patient with difficulty can get on and off without effort and always sits at the isocentre
  • O-dose platform and ClearView iterative reconstruction, which lower dose without losing diagnostic quality
  • AVW workstation, with advanced image analysis and processing
Learn more

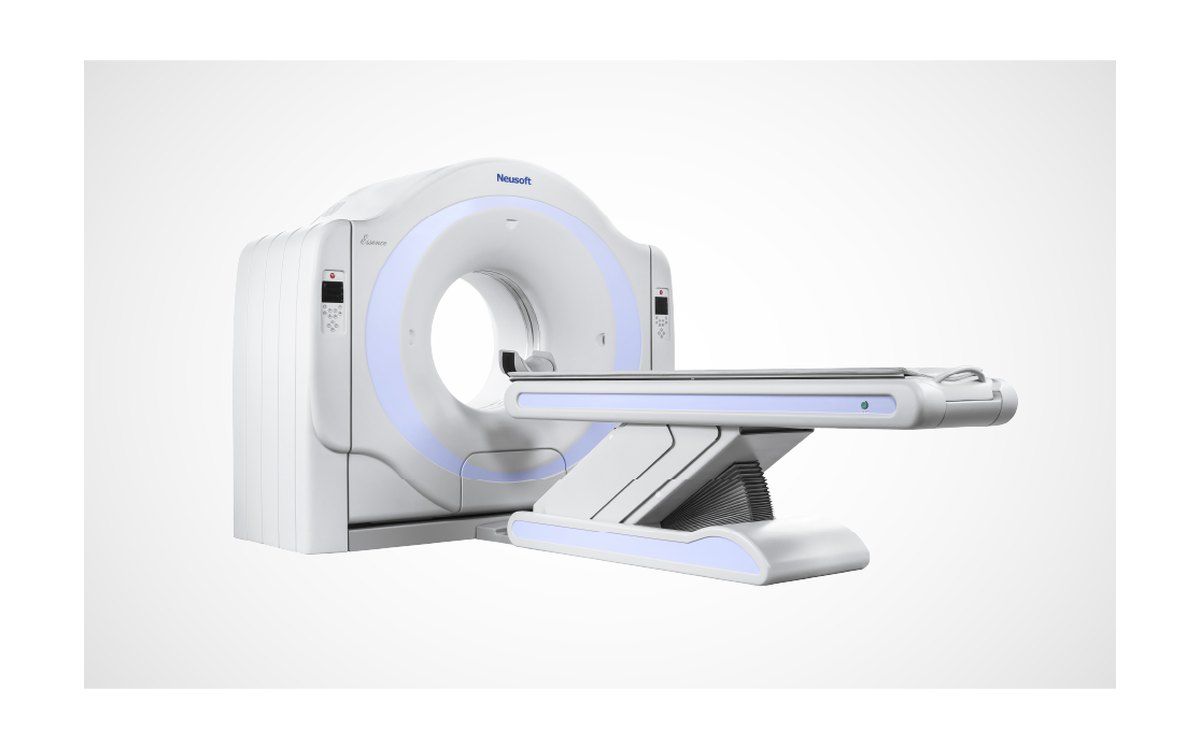

NeusoftNeusoft NeuViz 16 Essence
16 slice CT scanner on a 128 slice platform

Neusoft NeuViz 16 Essence

  • Built on the 128 slice CT platform
  • Isometric 32 row submillimetre detector, with 20 mm of coverage
  • Fast scanning with high quality images
  • 5.3 MHU tube with a 50 kW generator, for a long service life
  • O-dose platform and ClearView iterative reconstruction
  • The full range of advanced clinical applications from the workstation
Learn more

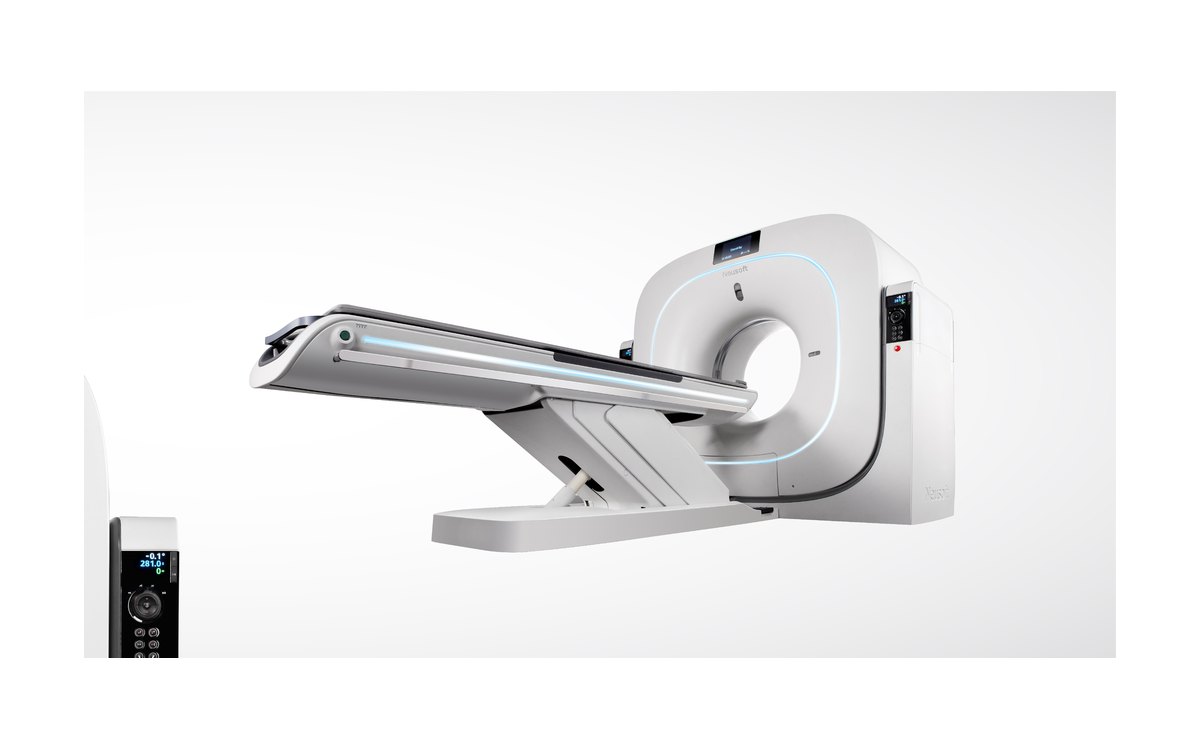

NeusoftNeusoft NeuViz 64 In
64 slice CT scanner

Neusoft NeuViz 64 In

  • Cardiac imaging capability for different types of patient
  • Quad-Sampling technology, which reduces scan time
  • O-dose platform, with hardware optimised for low dose
  • ClearView iterative reconstruction
  • Design built around the technologist's ergonomics
  • Device design oriented to the patient experience
Learn more

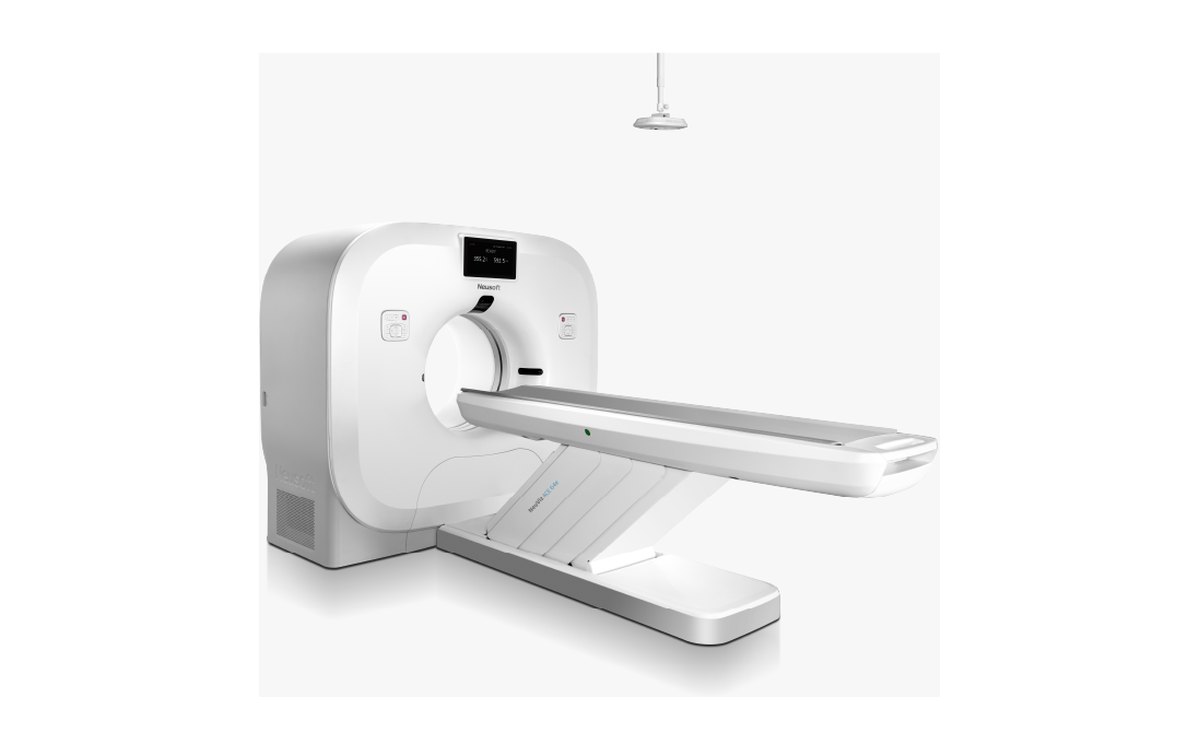

NeusoftNeusoft NeuViz ACE 64e
64 slice CT scanner with artificial intelligence reconstruction

Neusoft NeuViz ACE 64e

  • Reinforced hardware platform, with a powerful tube and an A-STAR detector
  • ClearInfinity reconstruction with artificial intelligence, which keeps the real texture at very low dose
  • Spatial resolution of 22 line pairs per centimetre
  • A-Touch operation, NeuAI positioning and the O-dose platform
Learn more

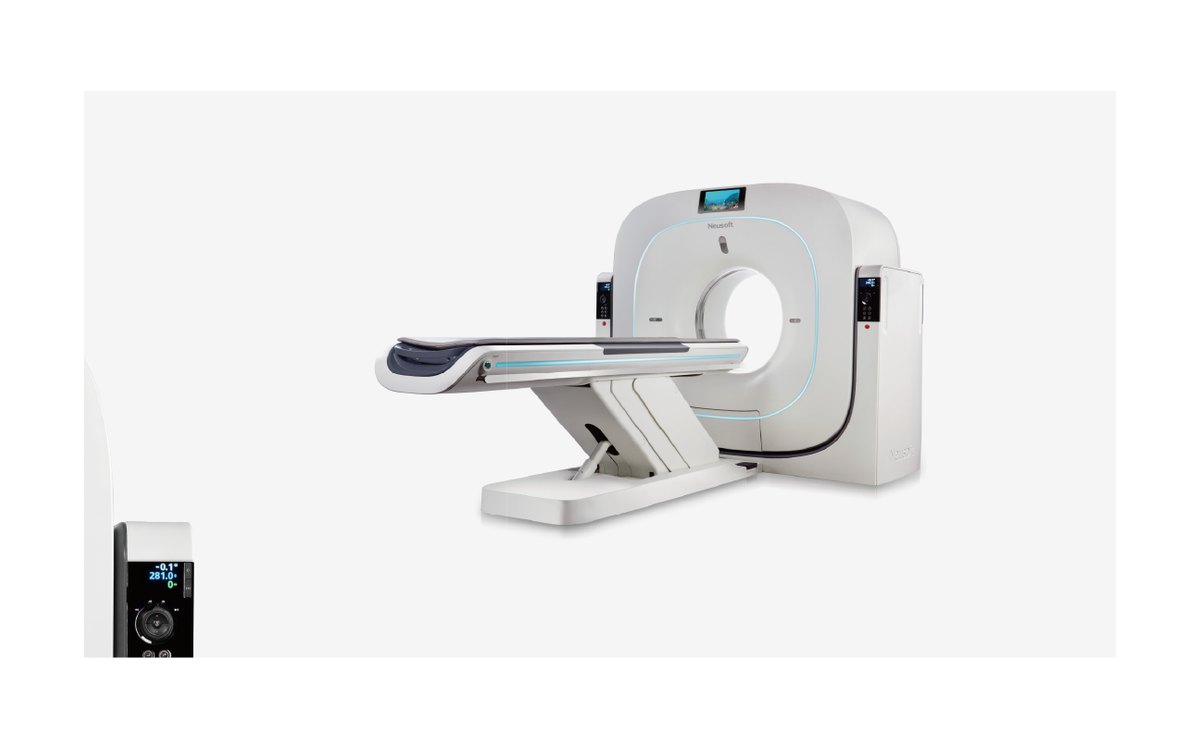

NeusoftNeusoft NeuViz 128
128 slice CT scanner

Neusoft NeuViz 128

  • Intelligent positioning system and highly automated processes
  • ClearInfinity reconstruction, developed with artificial intelligence algorithms
  • High definition imaging chain, with hardware and software integrated
  • Simplified interaction with the operator
Learn more

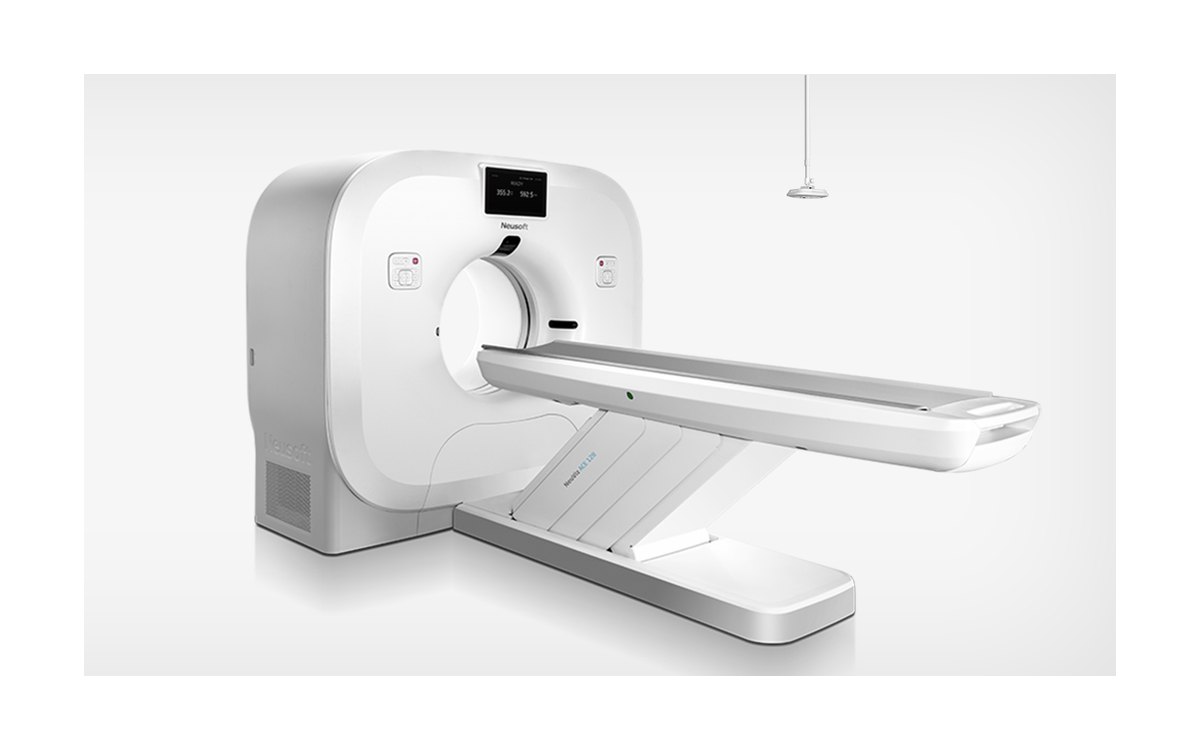

NeusoftNeusoft NeuViz ACE 128
128 slice CT scanner with an A-STAR tube

Neusoft NeuViz ACE 128

  • A-STAR tube with a liquid metal bearing and 19 MHU of heat capacity
  • 70 kV technology for low dose
  • ClearInfinity deep learning reconstruction, with more detail and less noise
  • High definition imaging chain designed for the full workflow
  • Takes a wider range of patients and extends the life of the tube
Learn more
