Manufacturer represented

Northern Meditec

Anaesthesia, ventilation and monitoring

Hospital Care

Northern Meditec
Its portfolio

Northern Meditec devices

Northern MeditecNorthern Atlas N5
Anesthesia machine

Northern Atlas N5

  • 12 inch TFT LCD touch screen, 800 x 600, with up to three configurable waveforms
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • Electronic flowmeter as standard, with O2, N2O and air supply
  • Metal and PPSU circuit, autoclavable at 134 degrees, with a built in heater
  • CO2 absorber operated one handed and changed without stopping the case, with an online canister detector
  • Fresh gas, compliance and leak compensation
  • Dual position Selectatec bar for the vaporiser, with a Dräger, Penlon or Northern option
  • Stainless steel work surface with rails on both sides and LED lighting
  • P-V, P-F and F-V spirometry loops, with a reference loop
Learn more
Northern MeditecNorthern Atlas N7
Anesthesia machine

Northern Atlas N7

  • 15.6 inch TFT LED touch screen, 1366 x 768, with a 17 or 19 inch option
  • Built in patient monitor and a rotating support arm with adjustable angle
  • Electronically controlled gas mixer for O2, N2O and air
  • Auto FiO2: one key adjusts oxygen flow to hold the inspired fraction
  • Automatic switchover if a gas runs short, O2 to air and N2O to O2
  • Tidal volume from 10 to 1500 ml, for neonatal, paediatric and adult patients
  • O2 flush from an electronic button on screen or a mechanical button on the work surface
  • Metal circuit with upward or downward bellows, autoclavable at 134 degrees
  • Up to four waveforms on the same screen, colour coded by parameter
  • Position detection for the circuit and the soda lime canister, with an alarm
Learn more
Northern MeditecNorthern Virgo
Vital signs monitor

Northern Virgo

  • 12.1 inch colour TFT LCD screen, with a touch option
  • Eight traces on screen and ECG analysis of up to twelve leads
  • ST and arrhythmia analysis, with seventeen types, and pacemaker detection
  • Haemodynamic, dose, oxygenation and ventilation calculations
  • Perfusion index in SpO2, reading down to 0.2 percent perfusion
  • MEWS early warning score
  • Night mode, standby mode and venipuncture mode
  • Graphic and tabular trends over 240 hours, with USB data output
  • Review and printing of 48 hours of full disclosure waveforms per patient
  • Wired or wireless central station, HL7 compatible with the hospital system
  • Rechargeable lithium ion battery and several mounting solutions
Learn more

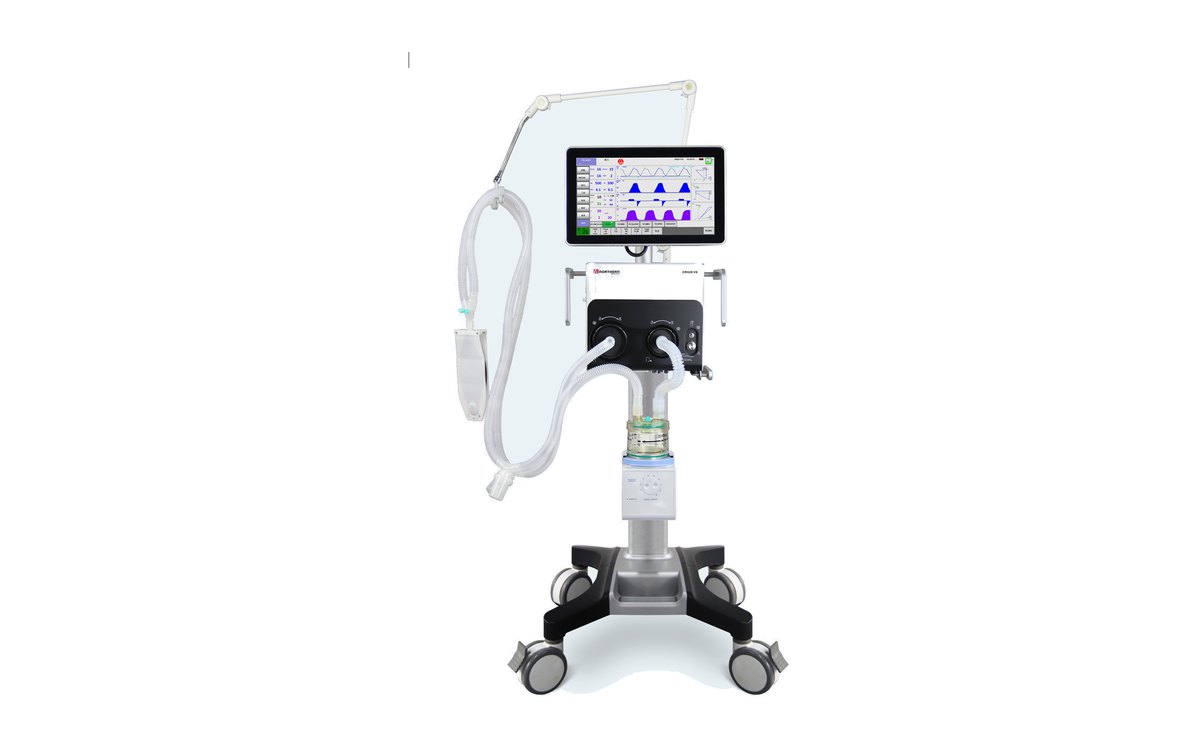

Northern MeditecNorthern Crius V6
Intensive care ventilator

Northern Crius V6

  • 15.6 inch TFT touch screen with 360 degree rotation, 18.5 inch optional
  • Turbine driven: it needs no piped compressed air
  • Two 5200 mAh lithium batteries, for up to six hours of runtime
  • Invasive and non invasive ventilation, plus high flow nasal cannula oxygen therapy
  • Tidal volume from 2 ml with the optional neonatal sensor
  • AMV mode, which reduces the work of breathing under a minute volume target
  • Power on self test with leak and system tightness checks
  • Automatic leak compensation and automatic flow and pressure trigger adjustment
  • Volumetric CO2 capnography, with optional EtCO2 measurement, and SpO2
  • High and low pressure oxygen inlets, for piped supply, cylinder or portable bag
  • Built in nebuliser and seven screen layouts
Learn more
