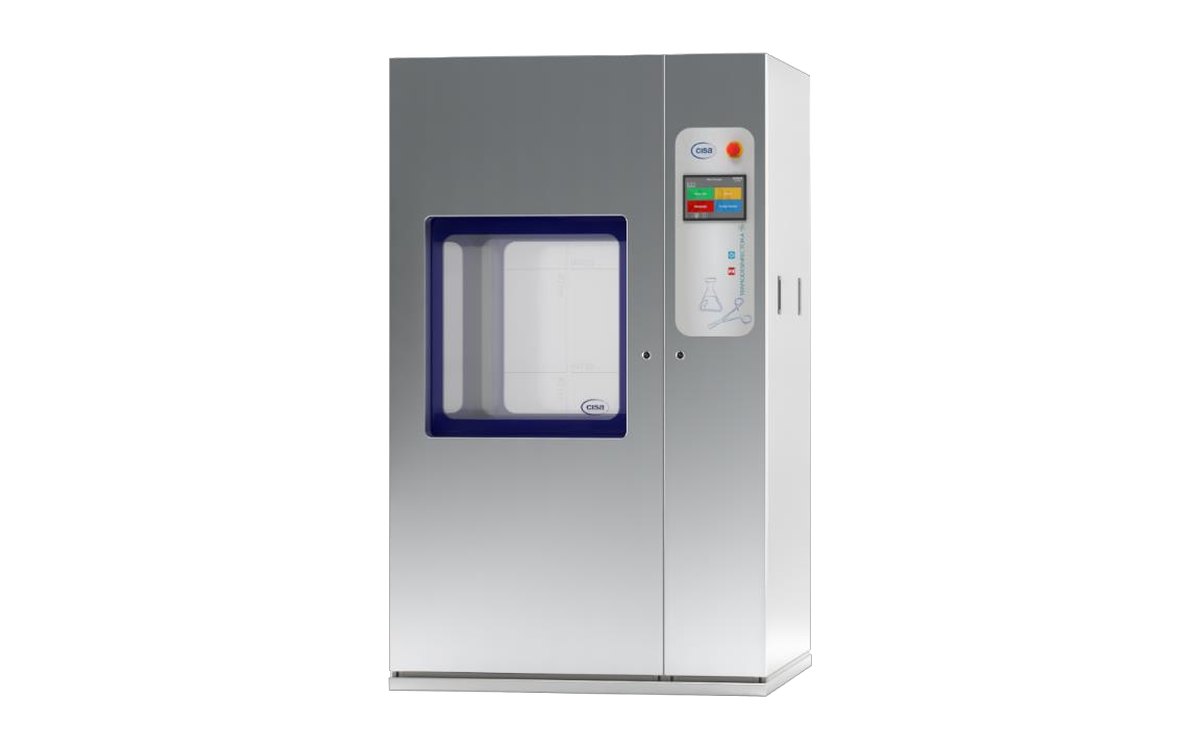

CISA 104

Washer disinfector

Manufacturer represented
SterilisationCategory
CISA 104
Request a quotation
  • Manufacturer represented by Quirurgil
  • Our own technical service, present in five cities
  • Original spare parts and engineers trained by the manufacturer

A 270 litre washer disinfector for the dirty side of the central sterilisation unit. It washes and disinfects with a validated, traceable process, so instruments reach packaging without manual handling in between, which is where the occupational risk and the variability sit. It is configured with one door or two, to work as a barrier between the dirty and clean areas.

What it brings

  • 270 litre chamber. The 155 version goes up to 365 litres
  • One door, or two to work as a barrier between the dirty and clean areas
  • High level thermal disinfection with a validated, traceable process
  • Closed cycles and open cycles, depending on the load
  • Temperature measurement sensors in the chamber and in the tank
  • Touch screen with a synoptic display and alarms during the cycle
  • Water pump pressure monitoring, with a warning if the quality is not right
  • Optional additional dosing pump, for a second detergent
  • Optional interior lighting, to see the load during the process
  • Racks suitable for washing and disinfecting baby bottles

Where it is used

  • Central sterilisation unit
  • Instrument washing area
  • Neonatal care

Specifications

Chamber620 x 700 x 623 mm, 270 litres. Model 155: 620 x 700 x 840 mm, 365 litres
DoorsOne for loading and unloading, or two for pass through
ControlTouch screen with an operator interface, synoptic display and alarms
SensorsChamber temperature and tank preheat temperature
Compressed air1/2 inch BSP female connection, 6 to 8 bar, 15 l/min, dry and oil free
Water3/4 inch BSP female connection, 0.5 to 2 bar, 30 l/min. Consumption per phase of 27 litres on the 104 and 38 on the 155
ExtractionDN120 connection, 280 m3/h flow, up to 110 degrees
OptionsPrinter, drying system, interior lighting, compressed air regulator, additional dosing pump, side covers and a touch panel on the unloading side

CISA does not publish this model's datasheet on its site. The information comes from the manufacturer's datasheet.

Request a quotation
Back to Sterilisation
Keep exploring

Other equipment in Sterilisation

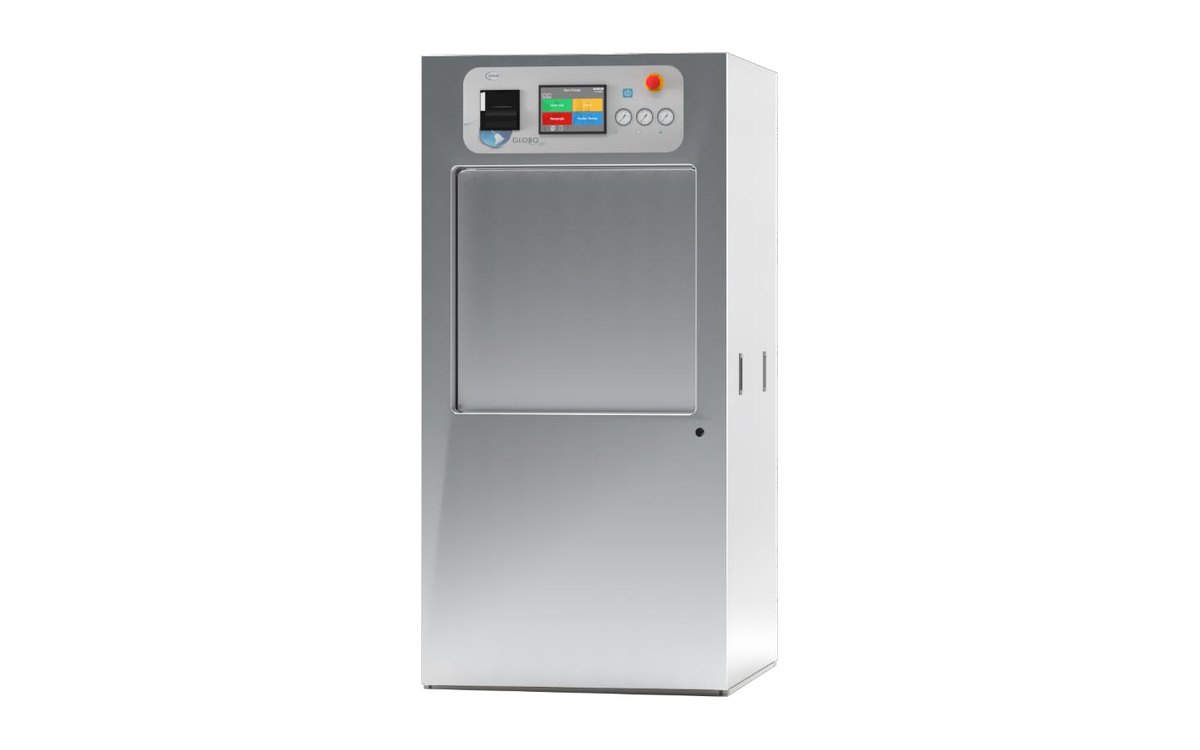

CISACISA Globo Slim
Steam autoclave

CISA Globo Slim

  • Seven chamber volumes, from 102 to 566 litres
  • One door for loading and unloading, or two to separate the dirty and clean sides
  • Two stage liquid ring vacuum pump
  • Cycle control with F0, which measures the accumulated lethality of the process
  • Touch screen monitor with a synoptic display of the machine
  • Heating from mains steam, an electric generator or both
  • 0.01 micron bacteriological air filter for vacuum break
  • Bowie and Dick steam penetration test in 29 minutes
  • Automatic water discharge from the generator and automatic pressure control
  • Stainless steel water charging pump
  • It sterilises textiles, rubber and silicone, metal instruments, liquids and glassware, up to 140 degrees
Learn more

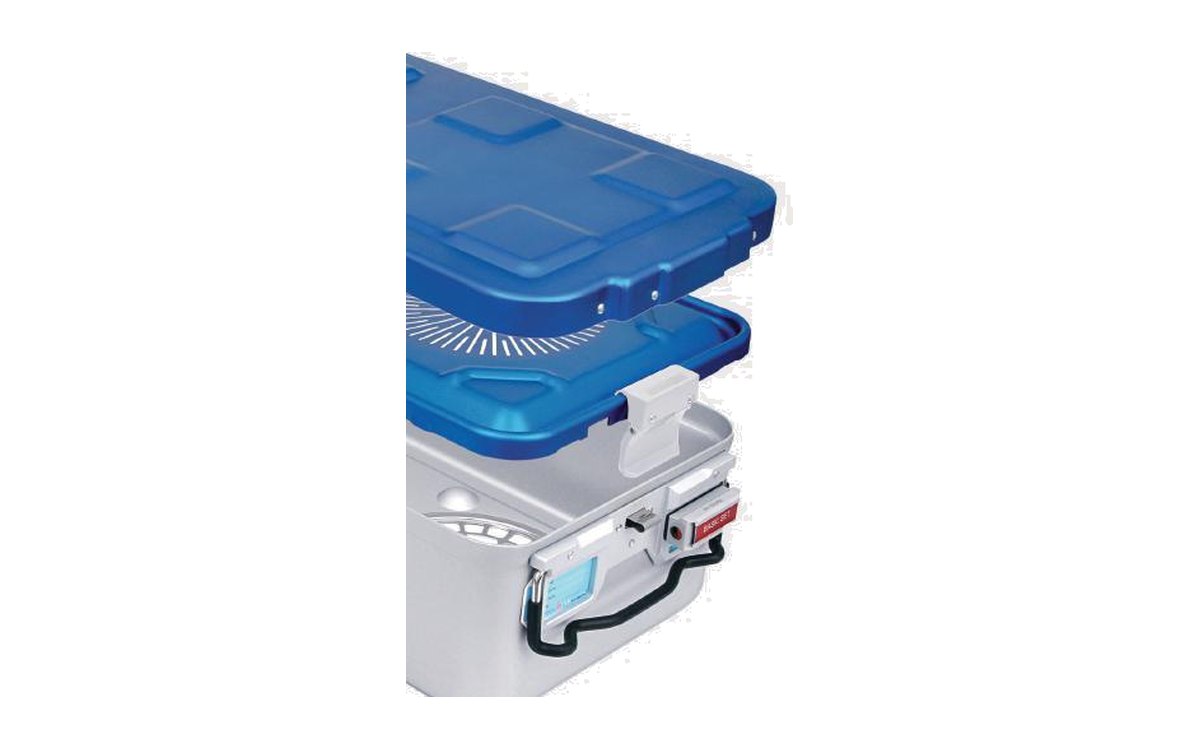

CISACISA Massimo
