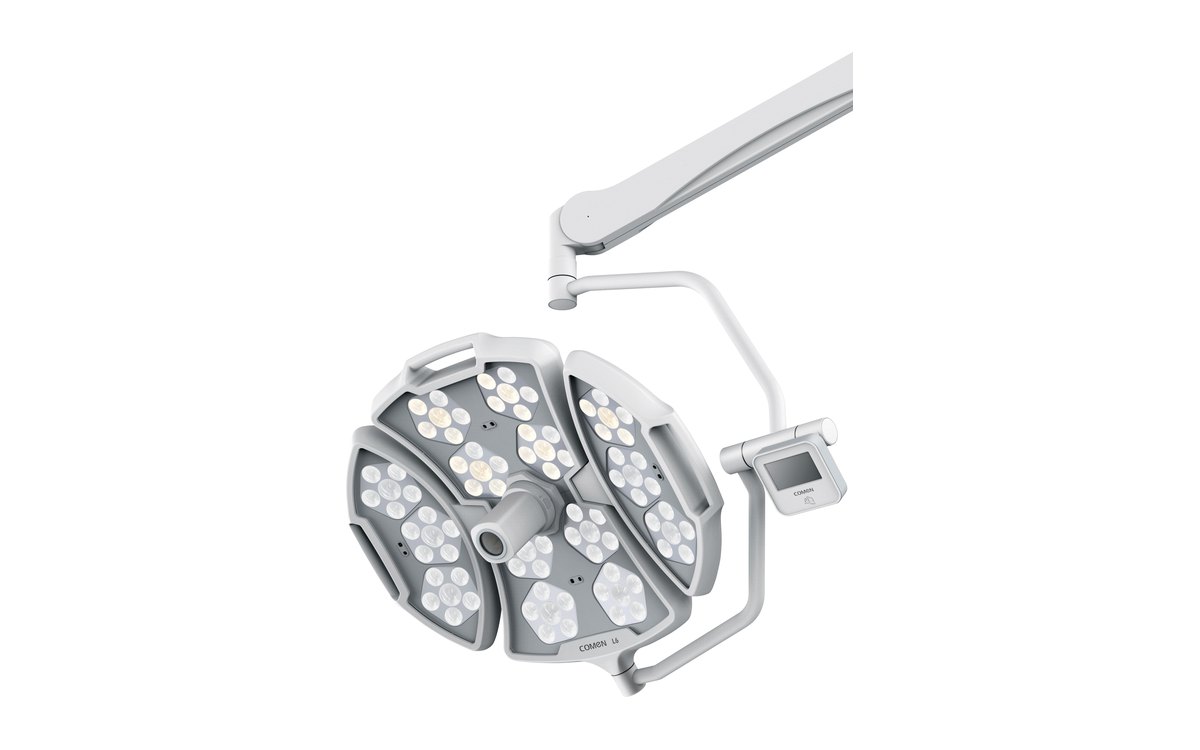

Comen L6

LED surgical light

Manufacturer represented
Surgical lightsCategory
Comen L6
  • Manufacturer represented by Quirurgil
  • Our own technical service, present in five cities
  • Original spare parts and engineers trained by the manufacturer

Ceiling surgical light with intelligent shadow management: a sensor detects when the surgeon's head blocks the light, dims the LEDs above them and raises the others, so the field stays lit without dazzling whoever is operating. Colour temperature adjusts between 3800 and 6000 kelvin, and it has a low light mode for endoscopic surgery.

What it brings

  • Intelligent shadow management: the sensor compensates for the light the surgeon blocks
  • Colour temperature adjustable from 3800 to 6000 K, warm for red tissue and cool for fat and muscle
  • Endoscopic surgery mode: steady, consistent light even at 5500 lux
  • Vertical and horizontal elliptical spot, in addition to the traditional round spot
  • Focus free lighting, which removes glare from metal instruments
  • OSRAM OSTAR polychromatic LED chips, with lower infrared radiation
  • ONDAL ACROBAT series spring arm, unlimited rotation and fail safe power supply
  • Arched, hollowed rear panel, so as not to interrupt laminar flow
  • Optional Sony camera and BARCO display, for teaching and assisted surgery

Where it is used

  • Operating room
  • Hybrid operating theatre
  • Endoscopic surgery
  • Delivery room
  • Intensive care
  • Day surgery

Specifications

IlluminationFrom 40,000 to 160,000 lux
Color temperature3800 to 6000 K, adjustable
Colour rendering indexRa 95,5 · R9 95
Irradiance≤ 3,65 mW/(m² · lux)
Light depth≥ 1300 mm
Shadowless index65 %
LEDs per head84 and 48, depending on configuration
LED service life15 years, after a 5000 hour test
ConfigurationsL6, L6A and L6B, single or dual head

Information taken from the manufacturer's brochure, reference ES-L6-12P. Comen no longer publishes the L6 on its website, which now lists the L3, L5 and L9.

Keep exploring

Other equipment in Surgical lights

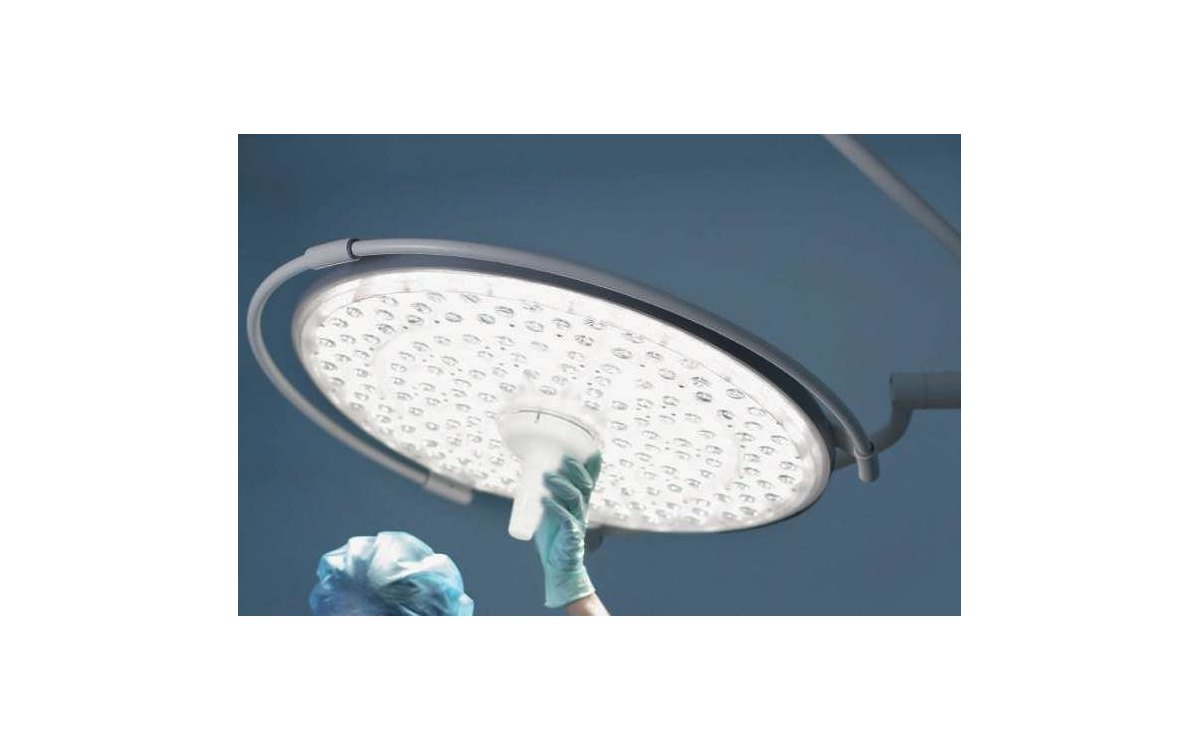

HeyerHeyer Purelit OL9500
Operating light

Heyer Purelit OL9500

  • Ultra-thin, streamlined head, ceiling mounted
  • Specially designed light path for a wide shadow-free area
  • Adjustable intensity according to the type of surgery
  • Optional camera system with high definition images
  • LED groups with independent circuits: if one group fails, the light keeps working
  • Antimicrobial coating and a shape optimised for sterilisation management

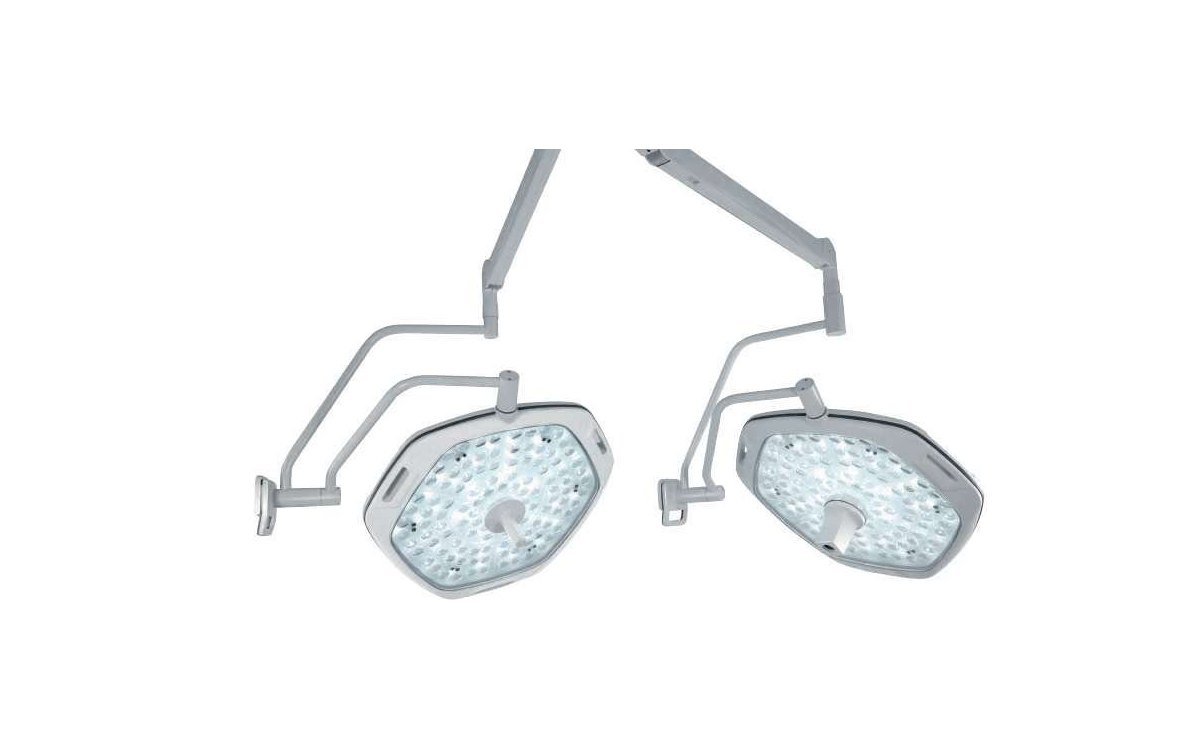

HeyerHeyer Purelit OL9600
Modular operating light

Heyer Purelit OL9600

  • Dedicated modes for spinal, deep cavity and cardiac surgery
  • Wide range of colour temperature adjustment
  • Adjustable light spot, from very small to very large
  • Infrared induction control of intensity and field, without touching the light
  • Head block function for the surgeon's comfort
  • Special endoscopic lighting, with intensity down to 50 lux

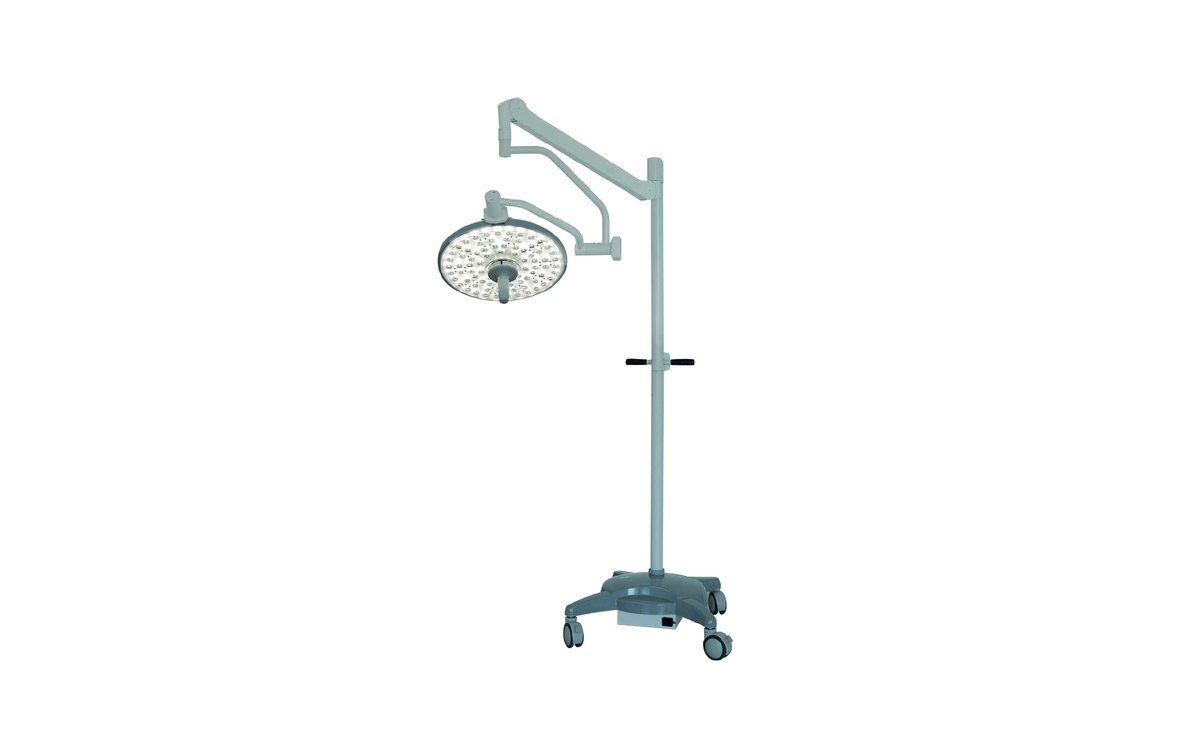

HeyerHeyer OLM9550 LED
Mobile surgical light

Heyer OLM9550 LED

  • Mobile base LED surgical light
  • Low environmental requirements, for rooms that are not operating theatres
  • Serves emergency treatment and auxiliary lighting
  • Serves as backup lighting if the main light fails
  • Rolls from one room to another without installation
