Comen
Electrocardiograph

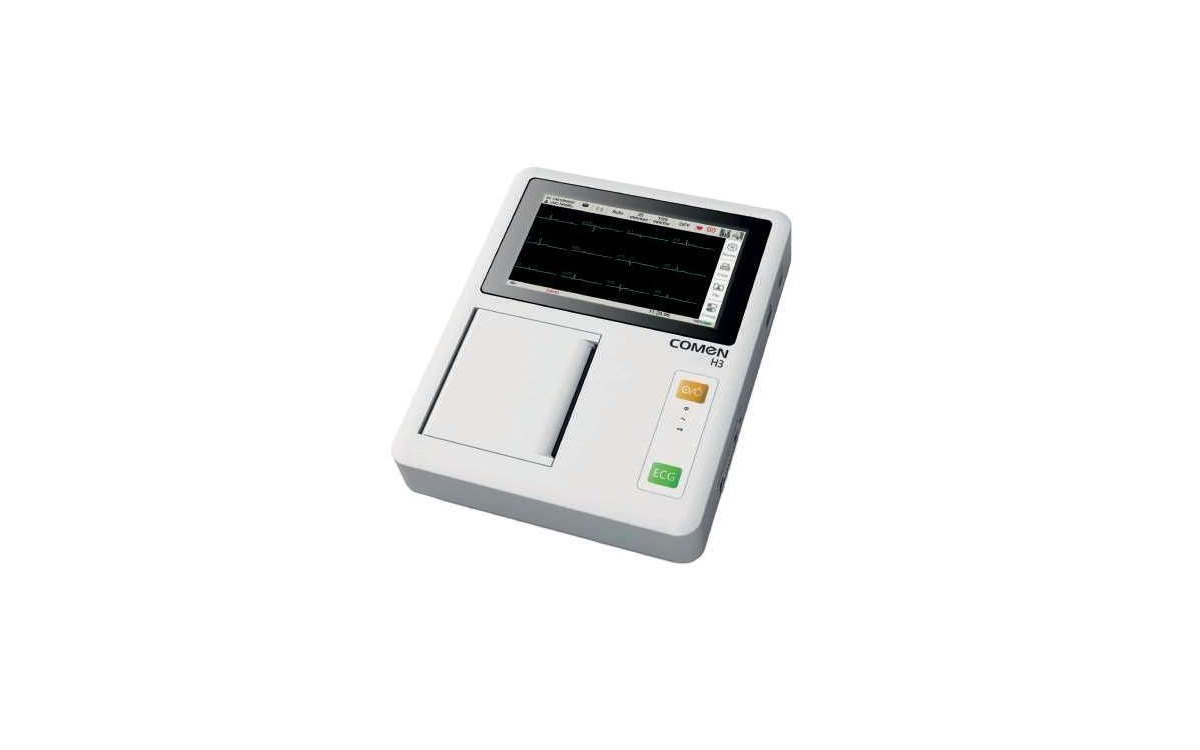

Comen H3
- 3 by 4 and 6 by 2 screen layouts, with all 12 leads at once
- Smart brightness sensor that adjusts the screen automatically
- Data recording and printing in the same unit
CardiologyCategory
- Manufacturer represented by Quirurgil
- Our own technical service, present in five cities
- Original spare parts and engineers trained by the manufacturer

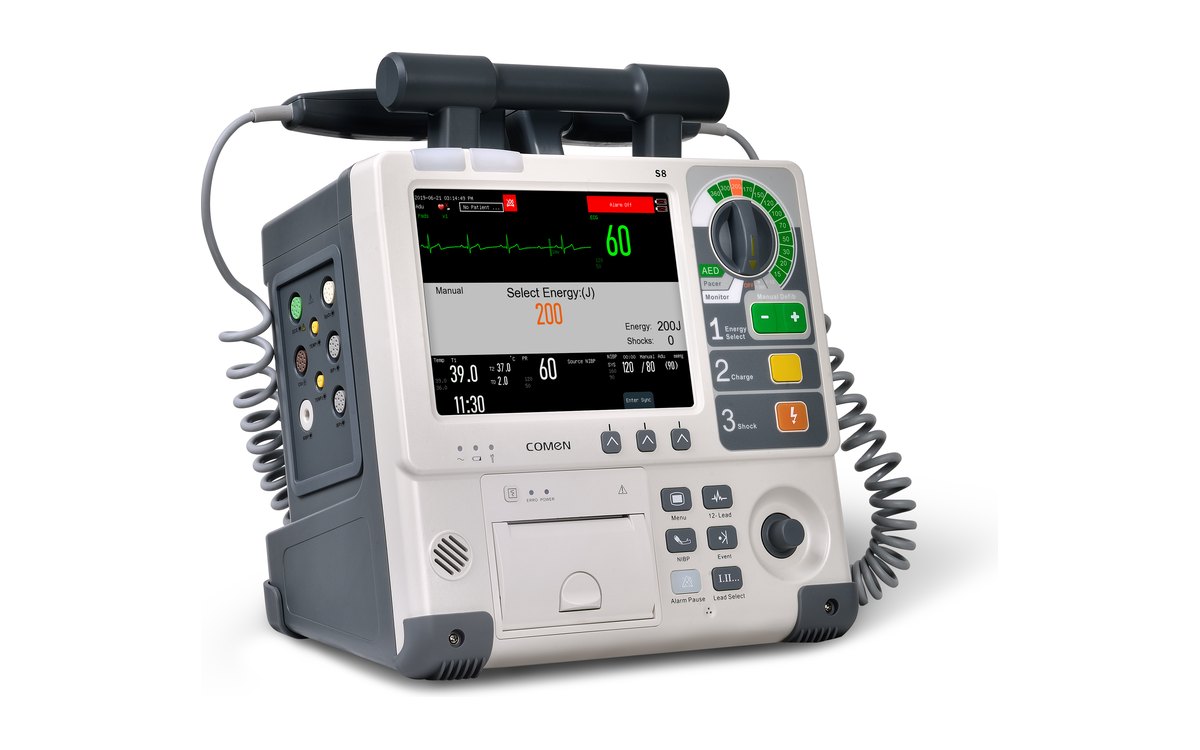

The complete model of the pair: defibrillation, AED mode, pacing and monitoring in one machine, with an 8.4 inch screen. The waveform is biphasic truncated exponential with automatic impedance compensation, which defibrillates with less energy. It adds twelve lead electrocardiography, EtCO2 and invasive pressure, which is what sets it apart from the S5.
What it brings
- Four functions in one machine: defibrillation, AED, pacing and monitoring
- Energy selection up to 360 J, in 25 steps
- Biphasic truncated exponential waveform with automatic impedance compensation
- 8.4 inch TFT screen
- 5 and 12 lead electrocardiography, SpO2, temperature, EtCO2 and invasive pressure
- Up to two 5000 mAh lithium ion batteries, for more than 420 shocks at 360 J
- Up to 9 hours in pacing mode with two charged batteries
- IP44 protection without external power
- 80 mm thermal printer and 240 minutes of voice recording
- Manual and automatic self test, to know it is ready
Where it is used
- Emergency department
- Intensive care
- Coronary care unit
- Ambulance
- Pre-hospital care
Specifications
| Energy | Up to 360 J, in 25 steps |
|---|---|
| Waveform | Biphasic truncated exponential, with impedance compensation |
| Display | 8.4 inch TFT |
| Parameters | 5 and 12 lead ECG, SpO2, temperature, EtCO2 and invasive pressure |
| Battery | Up to two 5000 mAh, 14.4 V lithium ion batteries |
| Runtime | More than 420 shocks at 360 J, or up to 9 hours in pacing mode |
| Ingress protection | IP44 without external power |
| Power | 100 to 240 V, 50/60 Hz |
| Printer and voice | 80 mm thermal and 240 minutes of recording, 60 per patient |
Technical information published by the manufacturer.
Keep exploring
Other equipment in Cardiology
Comen
12 lead electrocardiograph

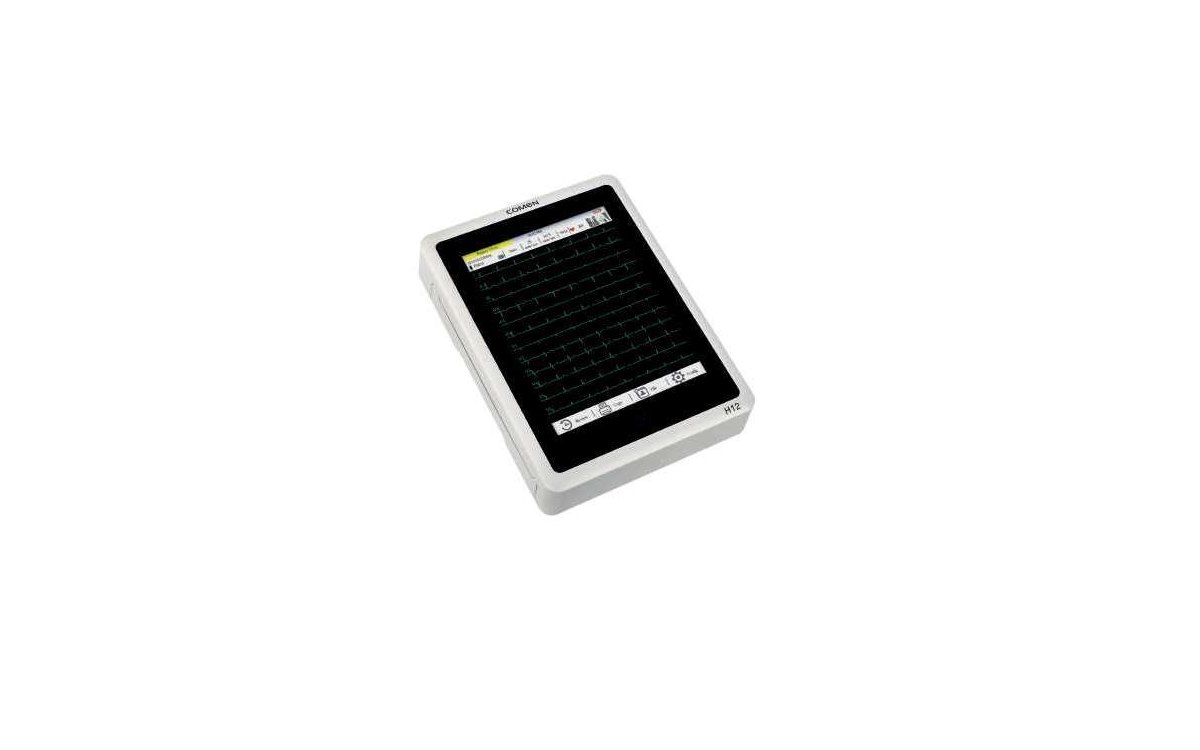

Comen H12
- High precision digital filter against baseline drift
- 600 seconds of 12 lead review
- Recording of 10 second strips of all 12 leads
- Enlarged lead status map, to see whether the leads are properly connected
- Optional scanner to load patient data quickly
Comen
12 channel electrocardiograph

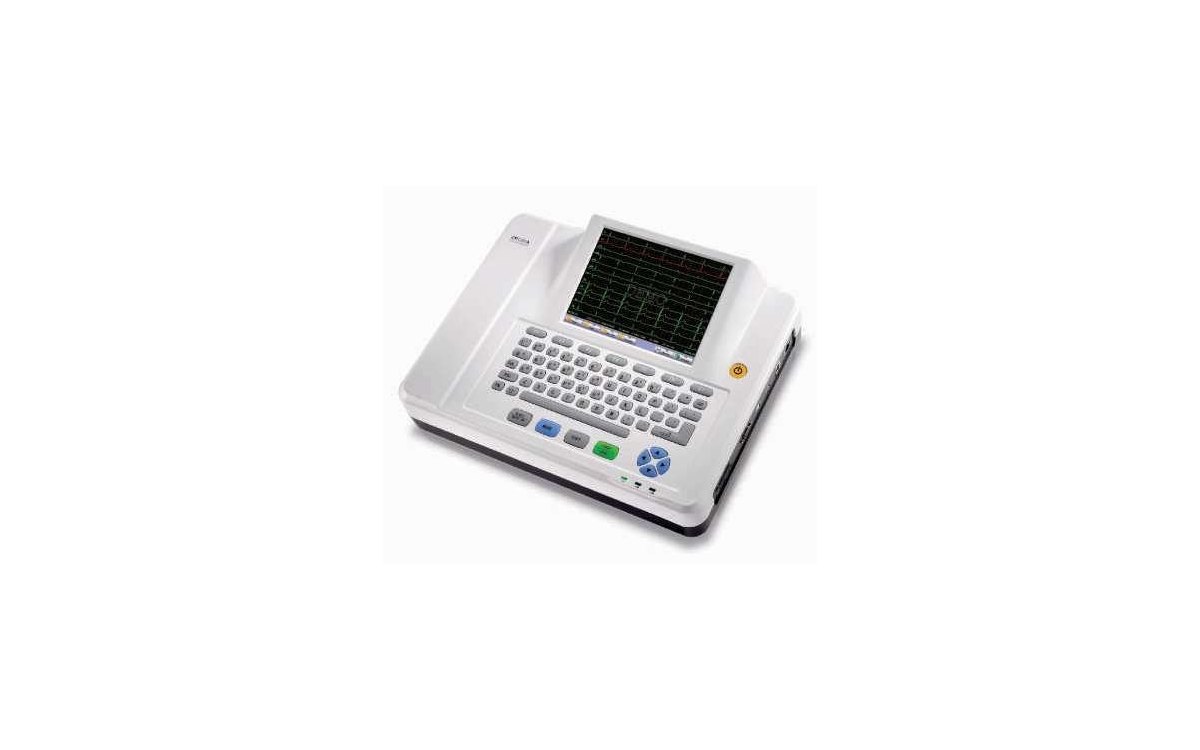

Comen 1200
- 12.1 inch colour LED screen, folding and touch operated
- Recording calibration against paper jams and trace drift
- Cabrera lead mode, useful for the frontal axis in ischaemia and infarction
- 12x1, 6x2+1R, 3x4+1R and 3x4+3R recording layouts
- Independent gain for chest and limb leads
- Internal memory for 10,000 electrocardiograms and a USB port
Comen
12 channel electrocardiograph

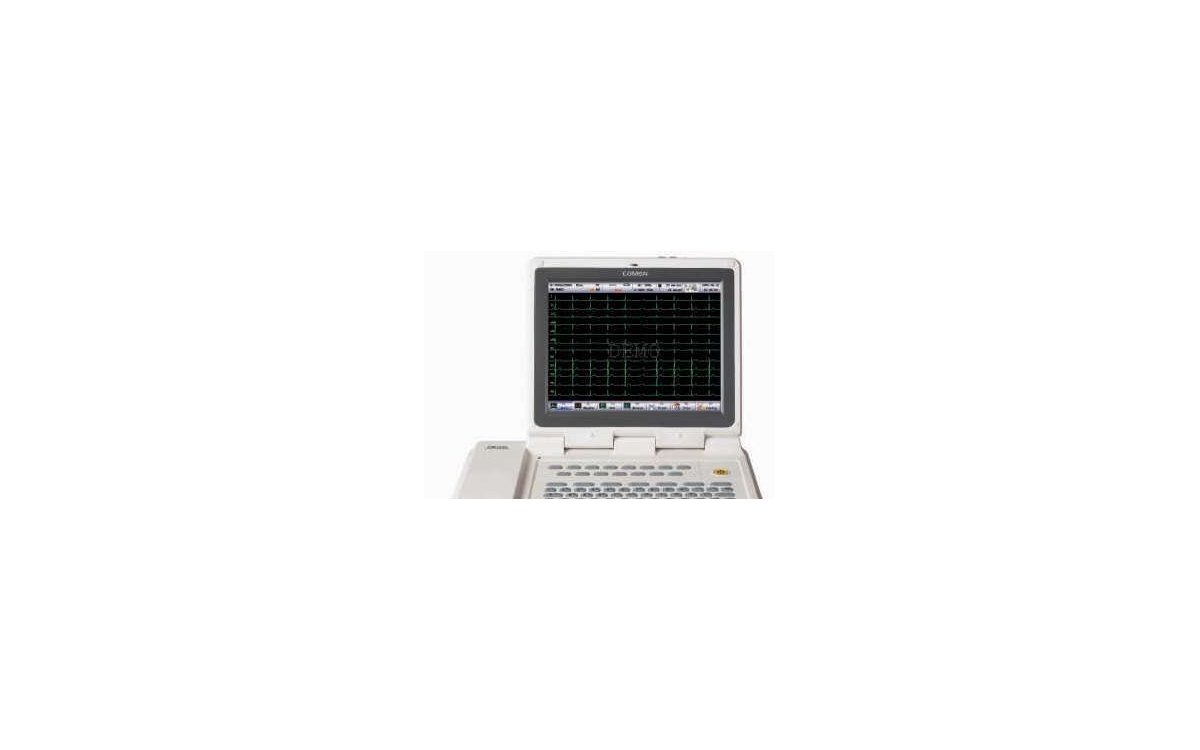

Comen 1200A
