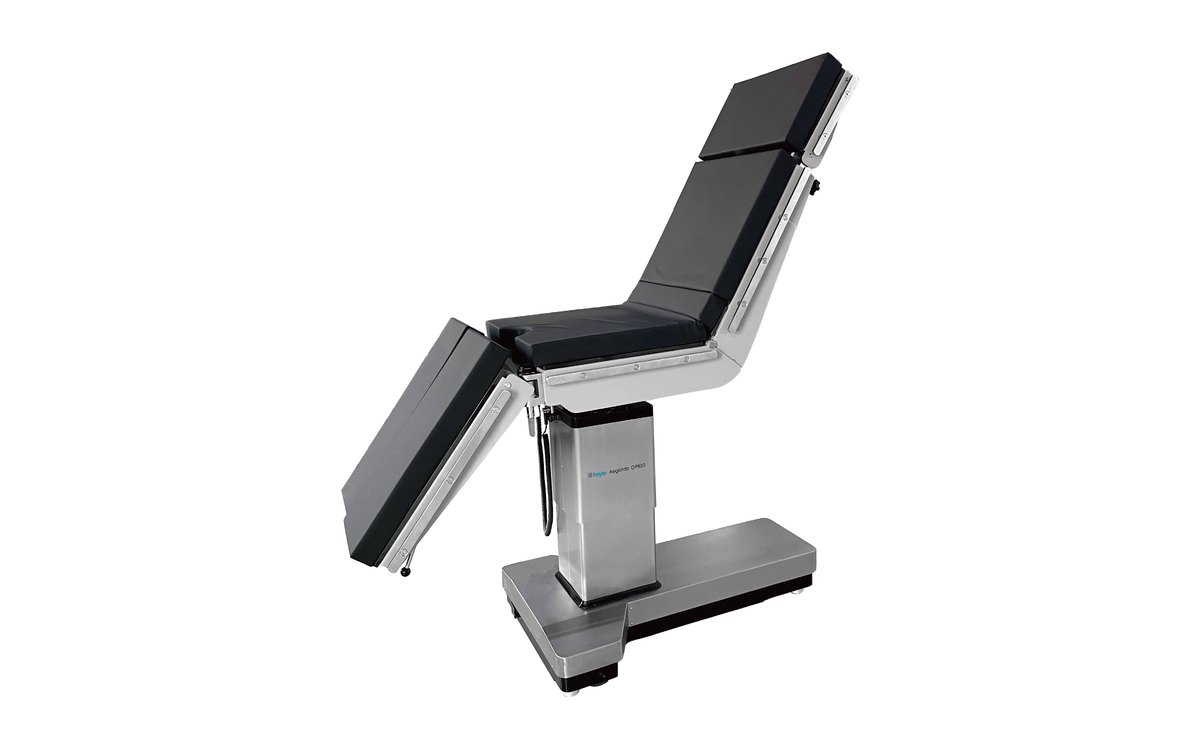

A table in alloy steel engineered to balance strength and weight: it holds more than 135 kilograms of dynamic load, which is what counts while the patient's position is changed mid surgery. The kidney bridge rises 136 millimetres and the electrically controlled hydraulic brake locks the table on any surface.
| Dimensions | 2040 mm long, 520 mm wide without the rail and 680 to 950 mm high without the mattress |
|---|---|
| Load | 135 kg safe working load and 297 kg maximum static load |
| Trendelenburg and reverse | 30 and 30 degrees |
| Lateral tilt | 20 degrees to each side |
| Head plate | 30 degrees up and 45 down, detachable |
| Back plate | 75 degrees up and 30 down |
| Leg plates | 5 degrees up and 90 down, splitting to 180 degrees |
| Flex and reflex | 210 and 105 degrees |
| Kidney bridge and shift | 136 mm lift and 300 mm longitudinal shift |
| Drive | Four electro-hydraulic systems |
Technical information published by the manufacturer.
