Manufacturer represented

Comen

Anesthesia, monitoring, cardiology and neonatal care · Transport and emergency monitoring

Hospital CareEMS

Comen
Its portfolio

Comen devices

ComenComen L6
LED surgical light

Comen L6

  • Intelligent shadow management: the sensor compensates for the light the surgeon blocks
  • Colour temperature adjustable from 3800 to 6000 K, warm for red tissue and cool for fat and muscle
  • Endoscopic surgery mode: steady, consistent light even at 5500 lux
  • Vertical and horizontal elliptical spot, in addition to the traditional round spot
  • Focus free lighting, which removes glare from metal instruments
  • OSRAM OSTAR polychromatic LED chips, with lower infrared radiation
  • ONDAL ACROBAT series spring arm, unlimited rotation and fail safe power supply
  • Arched, hollowed rear panel, so as not to interrupt laminar flow
  • Optional Sony camera and BARCO display, for teaching and assisted surgery
Learn more
ComenComen K1
Patient transport monitor

Comen K1

  • 5.5 inch capacitive touchscreen with 1280 by 720 resolution
  • Battery for up to 10 hours of continuous operation
  • IP44 protection against dust and splashes
  • Seamless data handover to the K12 Pro, K15 Pro, K18 Pro and K22 Pro monitors
  • EWS, Glasgow, SepsisGuide and CCHD clinical support tools
Learn more
ComenComen C30
Emergency and transport monitor

Comen C30

  • Nine shortcut keys, designed for first aid and emergency work
  • Waterproof, flame retardant and drop resistant housing
  • High brightness screen readable in strong sunlight
  • Docks as a module into the C70 and C90 monitors when the patient is admitted
  • Trend review and ECG waveform review
Learn more
ComenComen NC3 and NC5
Basic vital signs monitors

Comen NC3 and NC5

  • NC3: NIBP, SpO2, infrared ear temperature and pulse rate, in 1.25 kg
  • NC5: adds 3 lead ECG and an 8 inch TFT screen at 800 by 600
  • SpO2 compatible with three brands: Masimo, Nellcor and Comen
  • Single backlit start and stop key for NIBP
  • Built-in handle to move from bed to bed
Learn more
ComenComen Star8000H
Vital signs monitor

Comen Star8000H

  • Analog Devices ASIC dedicated to ECG measurement
  • NIBP assisted venipuncture: the cuff brings pressure close to diastolic
  • Network connection to the central station
Learn more
ComenComen Star 8000E and Star 8000F
Vital signs monitors

Comen Star 8000E and Star 8000F

  • Analog Devices ASIC dedicated to ECG measurement
  • NIBP assisted venipuncture using the monitor's own cuff
  • They join the networked central monitoring solution
Learn more

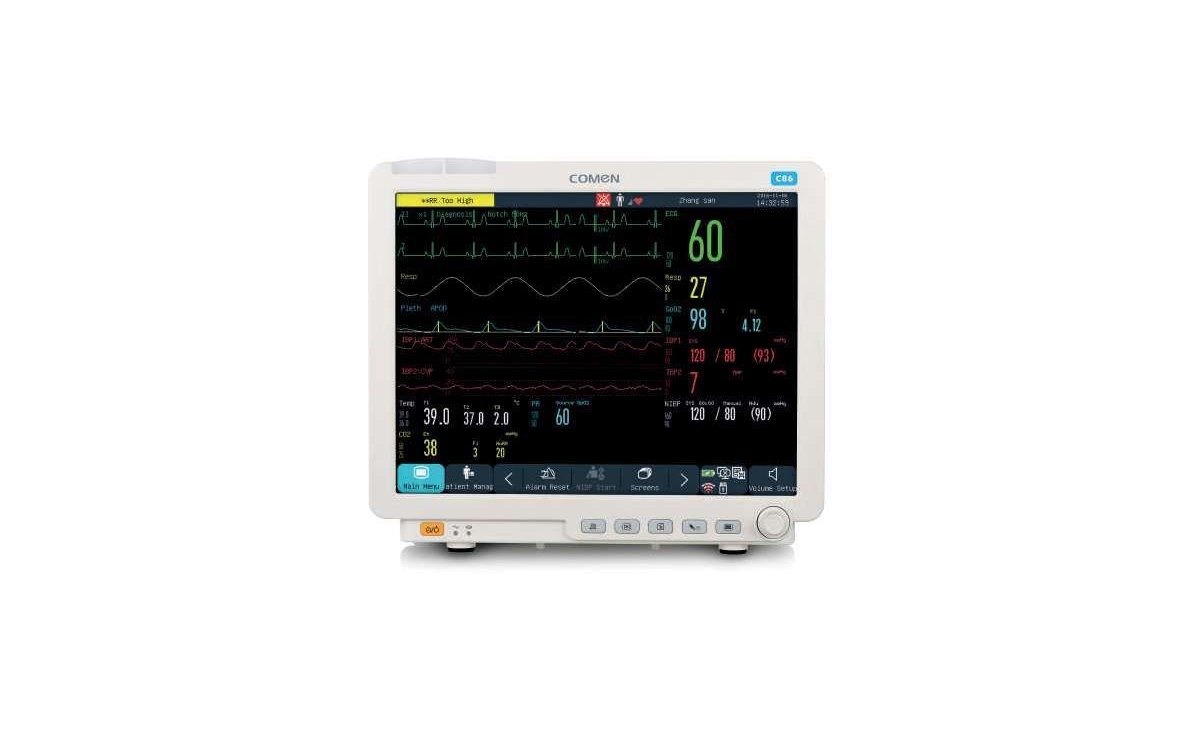

ComenComen C80 and C86
Multiparameter monitors

Comen C80 and C86

  • 15 inch LCD touchscreen with fixed handle and several mounting options
  • Masimo SpO2 with low perfusion and motion tolerant technology
  • BIS module to follow depth of consciousness during general anaesthesia
  • Cardiac output by thermodilution and impedance cardiography
  • I-KLOK smart alarm management with automatic level identification
  • IPX1 protection against dripping water
Learn more

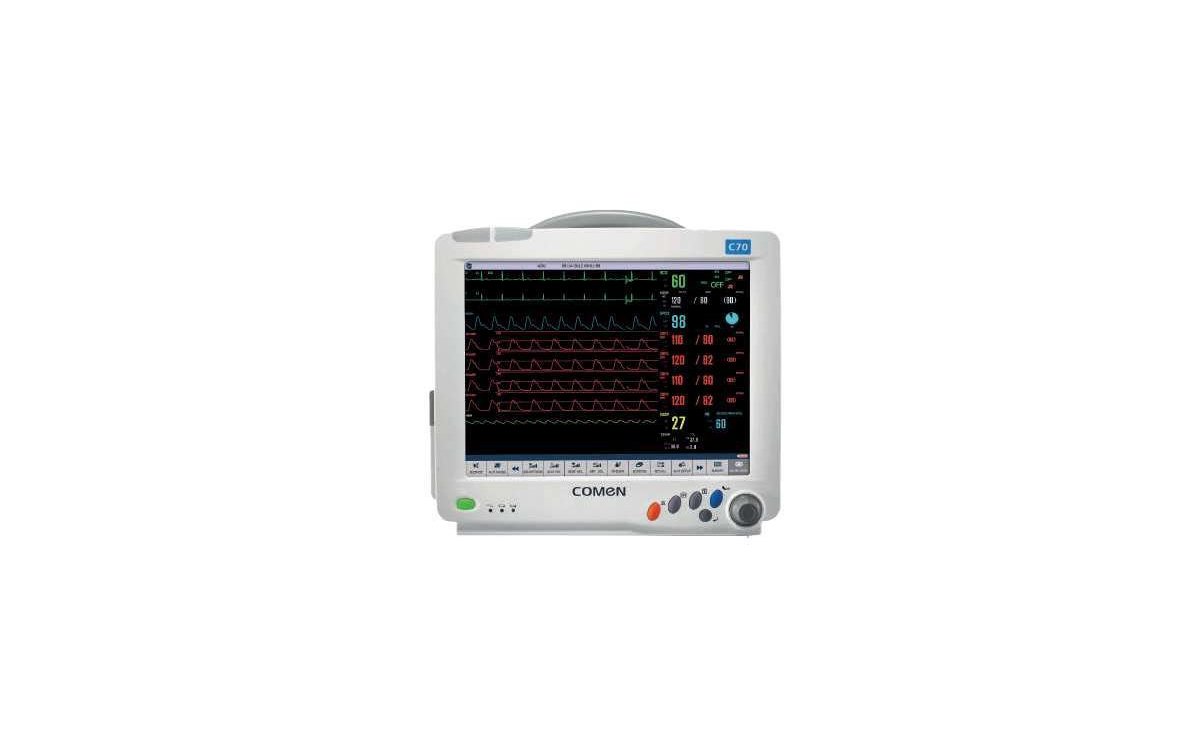

ComenComen C70
Modular patient monitor

Comen C70

  • Highly integrated modular structure, joining function and maintenance
  • 12 lead ECG with CardioTec technology
  • SpO2 with the OxiMax system
  • NIBP with AcuTec technique
  • i-Klok smart alarm system with three levels
  • Accepts the C30 transport monitor as a plug-in module
Learn more
ComenComen C90
Modular patient monitor

Comen C90

  • Four module slots plus one, hot swappable
  • Automatic module identification and dynamic interface adjustment
  • 12 lead ECG with CardioTec technology and 105 dB CMRR
  • Adult, paediatric and neonatal on the same unit
  • i-Klok smart alarm system with three levels
Learn more

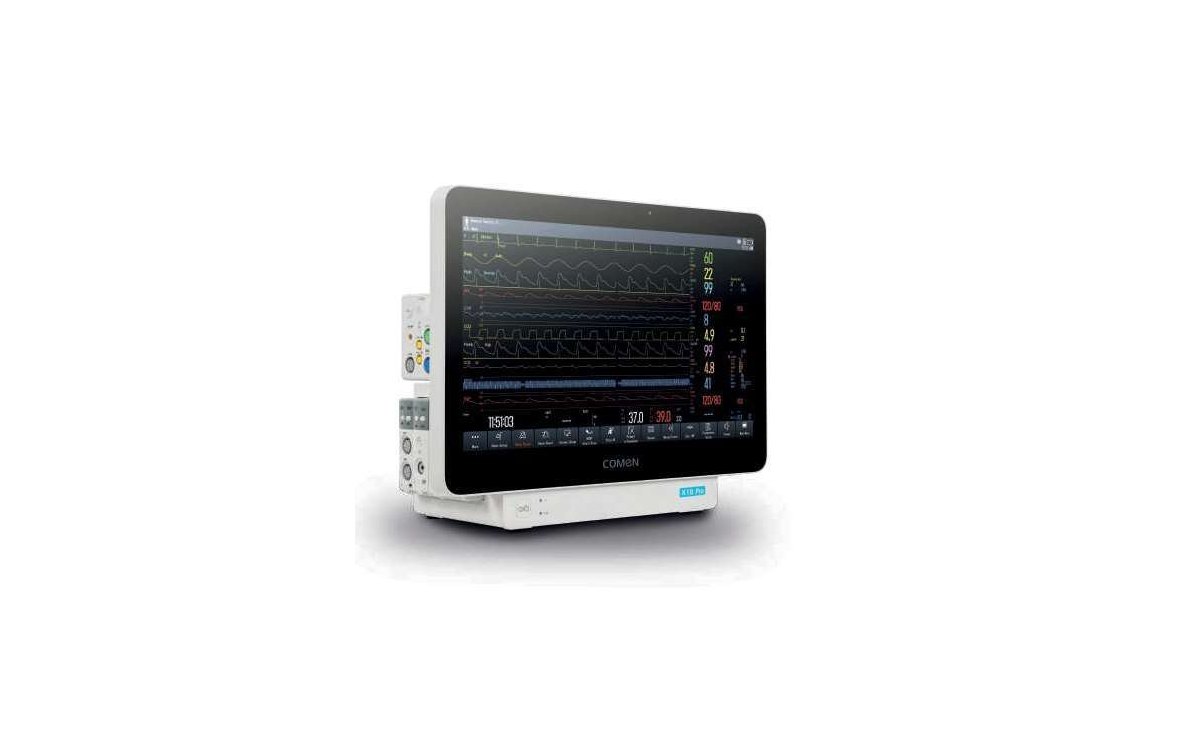

ComenComen K12 Pro, K15 Pro and K18 Pro
Intensive care monitors

Comen K12 Pro, K15 Pro and K18 Pro

  • 27 arrhythmia classifications, with QT and QTc monitoring
  • 6 lead ECG and a 24 hour summary with heart rate trends
  • 7 to 1 contrast ratio, meeting WCAG 2.0 AAA for legibility
  • Automatic brightness adjustment to the light in the room
  • Gesture control to move through the patient data
Learn more
ComenComen K22 Pro
21.5 inch patient monitor

Comen K22 Pro

  • 21.5 inch capacitive touchscreen, in portrait or landscape mode
  • Up to 16 channels visible at once
  • Up to 8 module slots plus the Z03 add-on
  • Continuous data handover from the K1 transport monitor
  • Neonatal user interface, with Masimo Rainbow SET and dual SpO2
Learn more
ComenComen advanced parameter modules
Modules for patient monitors

Comen advanced parameter modules

  • Neurology: BIS, SedLine, EEG, aEEG and Masimo O3
  • Respiratory: respiratory mechanics, EtCO2, O2 and anaesthetic gas
  • Circulatory: cardiac output, ICG, PiCCO, ProAQT and Masimo Rainbow SET
  • Hot swappable, without switching the monitor off
  • The monitor identifies the module and adjusts the display on its own
Learn more

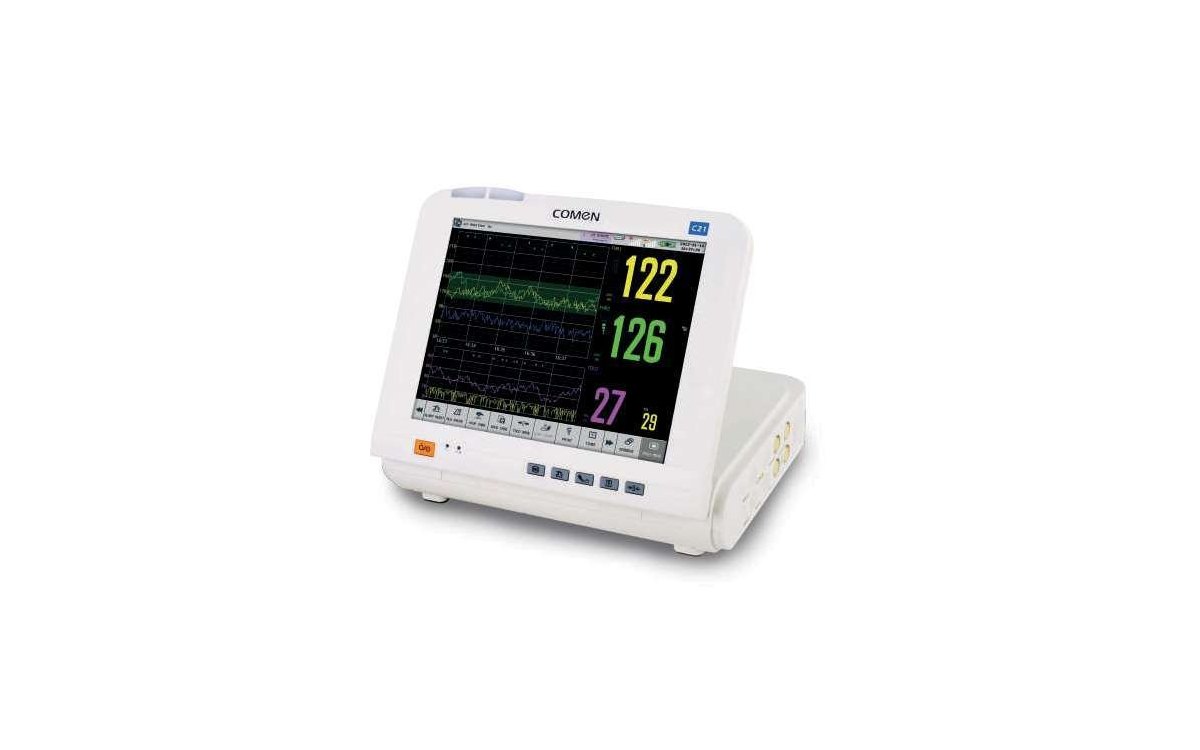

ComenComen C21 and C22
Fetal and maternal monitor

Comen C21 and C22

  • Folding screen with a maximum angle of 90 degrees
  • Damped hinge and magnet in the frame, to open and close one handed
  • Two models with the same operating logic
Learn more

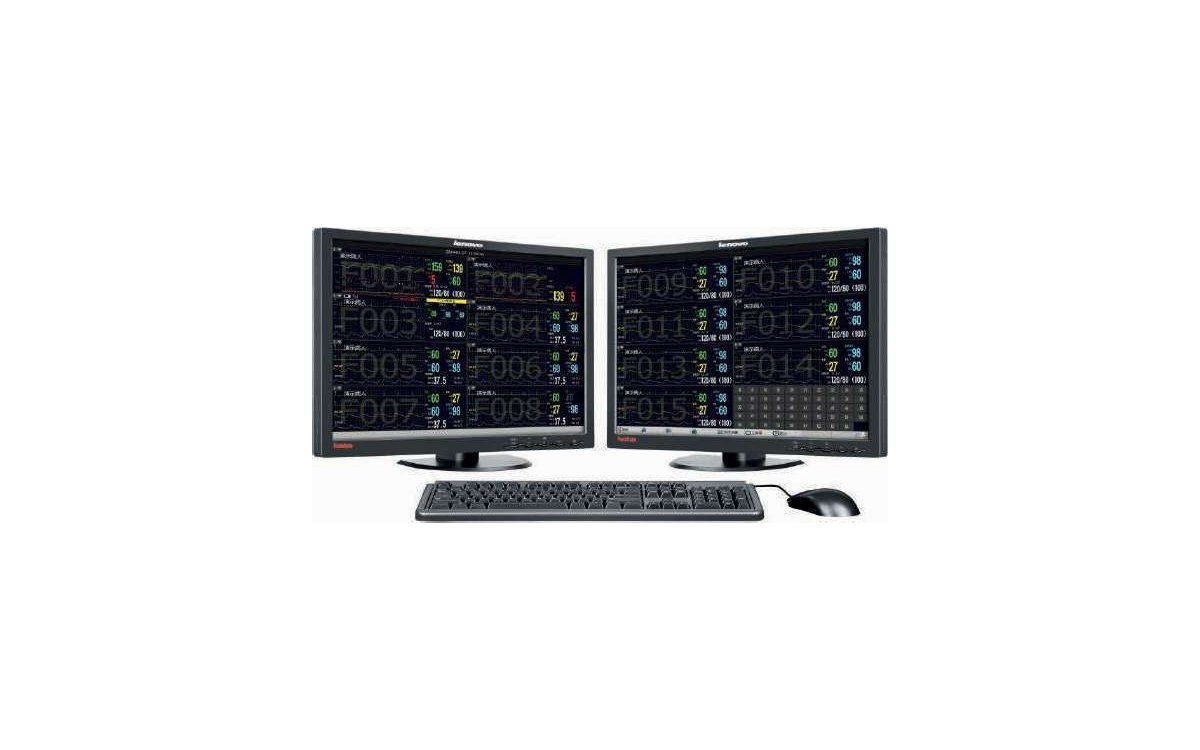

ComenComen Star 8800
Central monitoring station

Comen Star 8800

  • One screen shows up to 32 bedside monitors
  • Dual screen for 64 monitors under simultaneous observation, up to 128 in total
  • Foetal and multiparameter monitors mix in the same central station
  • Doctor's observation station in any room, with the CMS VIEW software
  • Server included and isolated signal network, for stability and low interference
Learn more
ComenComen H3
Electrocardiograph

Comen H3

  • 3 by 4 and 6 by 2 screen layouts, with all 12 leads at once
  • Smart brightness sensor that adjusts the screen automatically
  • Data recording and printing in the same unit
Learn more
ComenComen H12
12 lead electrocardiograph

Comen H12

  • High precision digital filter against baseline drift
  • 600 seconds of 12 lead review
  • Recording of 10 second strips of all 12 leads
  • Enlarged lead status map, to see whether the leads are properly connected
  • Optional scanner to load patient data quickly
Learn more
ComenComen 1200
12 channel electrocardiograph

Comen 1200

  • 12.1 inch colour LED screen, folding and touch operated
  • Recording calibration against paper jams and trace drift
  • Cabrera lead mode, useful for the frontal axis in ischaemia and infarction
  • 12x1, 6x2+1R, 3x4+1R and 3x4+3R recording layouts
  • Independent gain for chest and limb leads
  • Internal memory for 10,000 electrocardiograms and a USB port
Learn more
ComenComen 1200A
12 channel electrocardiograph

Comen 1200A

  • Same CM1200 platform, with a folding colour screen
  • 12x1, 6x2+1R, 3x4+1R and 3x4+3R recording layouts
  • Cabrera lead mode
  • Large internal memory and USB transfer
Learn more
ComenComen SCD 600
Sequential compression device

Comen SCD 600

  • 4.3 inch LCD touchscreen, transparent
  • Single clip design that fastens in different positions
  • Compression of leg, foot or both at the same time
  • Optional trolley with quiet castors and a basket for accessories
  • Compact unit, easy to move between beds
Learn more
ComenComen S8
Monitor defibrillator

Comen S8

  • Four functions in one machine: defibrillation, AED, pacing and monitoring
  • Energy selection up to 360 J, in 25 steps
  • Biphasic truncated exponential waveform with automatic impedance compensation
  • 8.4 inch TFT screen
  • 5 and 12 lead electrocardiography, SpO2, temperature, EtCO2 and invasive pressure
  • Up to two 5000 mAh lithium ion batteries, for more than 420 shocks at 360 J
  • Up to 9 hours in pacing mode with two charged batteries
  • IP44 protection without external power
  • 80 mm thermal printer and 240 minutes of voice recording
  • Manual and automatic self test, to know it is ready
Learn more

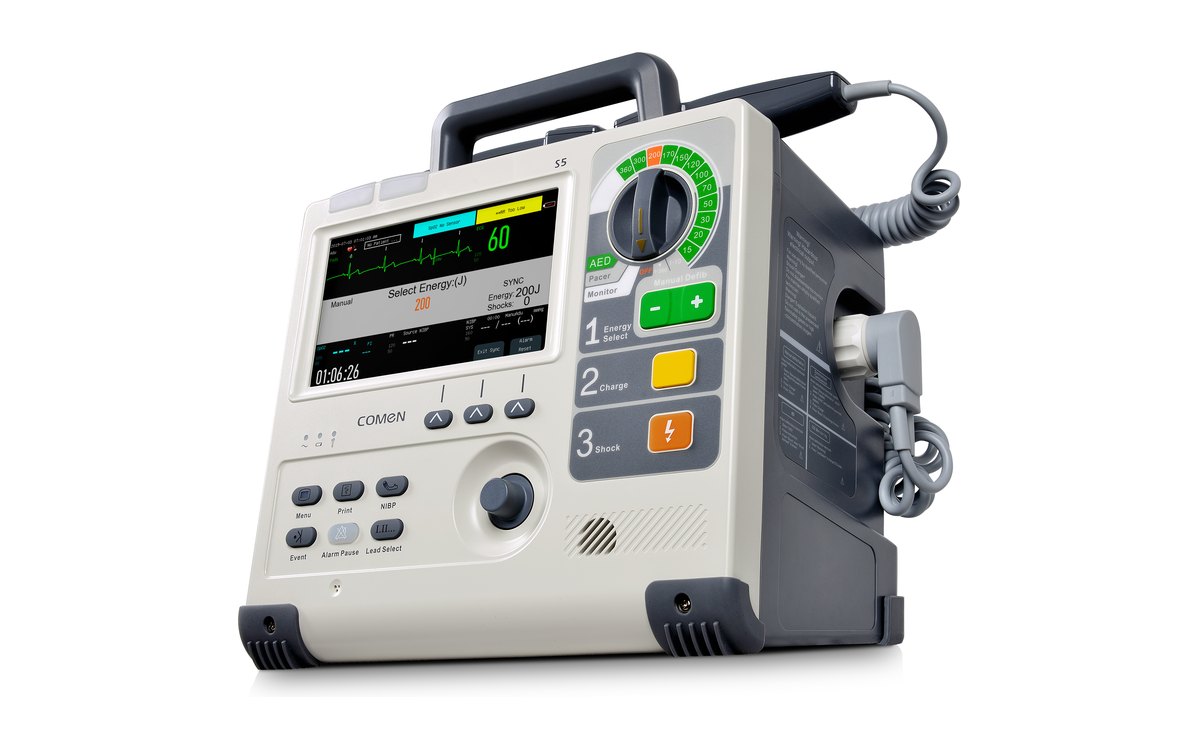

ComenComen S5
Compact monitor defibrillator

Comen S5

  • Four functions in one machine: defibrillation, AED, pacing and monitoring
  • Energy selection up to 360 J
  • Biphasic truncated exponential waveform with automatic impedance compensation
  • 5.6 kg with one battery, to carry it to wherever the patient is
  • 7 inch TFT screen
  • 5000 or 7500 mAh lithium ion battery
  • Up to 4.5 hours in pacing mode with the 7500 mAh battery
  • IP44 protection
  • ECG, respiration, SpO2, non invasive pressure and pulse parameters, with EtCO2 available
  • Manual and automatic self test, to know it is ready
Learn more
ComenComen BQ70
Neonatal resuscitator

Comen BQ70

  • T-piece infant resuscitation system to establish a clear airway
  • Delivers oxygen or air and oxygen blends for newborn resuscitation
  • Integrates suction, resuscitation and oxygen therapy in a single device
  • Saves space in the care area and simplifies setup
Learn more
ComenComen B3
Neonatal incubator

Comen B3

  • Seven sensors and a cascade PID algorithm against overheating
  • Monitoring accuracy of 0.1 degrees and control accuracy of 0.5 degrees
  • Preheat in 15 minutes or less, with horizontal uniformity of 0.5 degrees
  • Apnoea rescue: abdominal sensor and a vibrator on the foot that stimulates the infant
  • Transparent removable water tank, against dry burning and infection
  • Electric bed with motorised tilt and a damped access door
Learn more
ComenComen B8
Neonatal incubator

Comen B8

  • Chamber warm-up in 35 minutes or less, with 0.5 degree fluctuation
  • Three independent overheating protections: system, hardware and mechanical
  • Effective humidity above 95 percent, for low weight premature infants
  • Titanium alloy evaporator and PEEK insulation, corrosion resistant
  • Neonatal monitoring with ExNeo ECG, Adap-DSP NIBP, Masimo SpO2 and apnoea rescue
  • Electric height adjustment by pedal and touchscreen, with adjustable tilt
Learn more
ComenComen BQ80
Radiant warmer

Comen BQ80

  • Elstein far infrared ceramic heating tube, more efficient and longer lasting
  • Thermally conductive silicone gel mattress, antibacterial and against pressure ulcers
  • Built-in X-ray cassette, without moving the newborn
  • Contactless alarm silencing, by moving a hand in front of the sensor
  • Alarm indicator visible at 360 degrees and a three level LED puncture lamp
  • Damped door and swivel lamp
Learn more

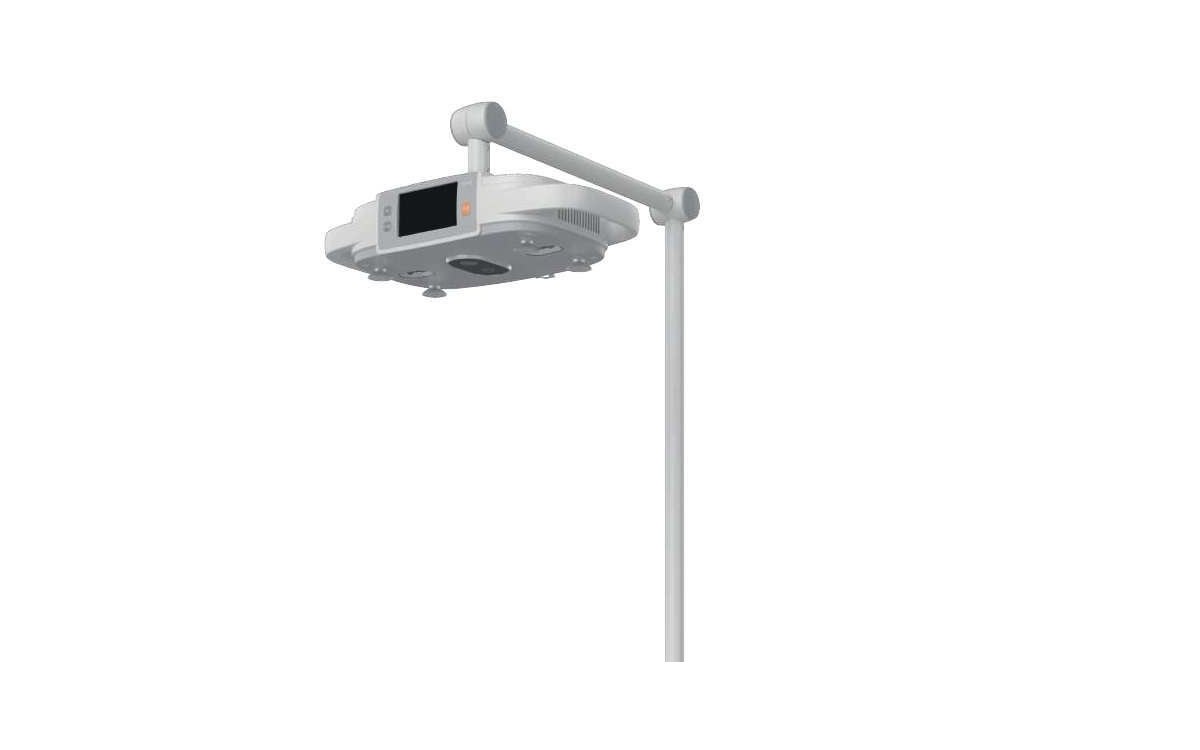

ComenComen BL70
Phototherapy lamp

Comen BL70

  • Irradiance probe that accurately measures the light reaching the infant
  • Maximum irradiance of 63 microwatts per square centimetre per nanometre
  • Five irradiance levels, according to the patient
  • Cold light LED source, with less heat and longer treatment
  • Service life of up to 50,000 hours
Learn more
ComenComen MX8900
Infusion workstation

Comen MX8900

  • Modular plug and play design, expanding from two to twenty four pumps
  • Main controller for centralised management, and a cascade controller charging over a single cable
  • Intelli.Fast: first drop delivered nine seconds after power up
  • Intelli.Plan: saved treatment plans with the infusion parameters already set
  • Library of up to five thousand drugs and a dose error reduction system
  • Dynamic pressure system with twelve levels and early occlusion warning
  • Anti bolus: it releases the high pressure when occlusion happens
  • Six level bubble detection, with cumulative counting in fifteen minute windows
  • Dual pressure sensor, upstream and downstream, and automatic flow compensation
  • Automatic recognition of 2 to 60 ml syringes, from several brands
  • Continuous titration: the rate changes without stopping the infusion
  • Wired or WiFi connection, with HL7 to HIS, CIS and EMR
  • Carry handle and drop sensor for the empty container
Learn more
ComenComen M300
Syringe pump

Comen M300

  • Folding 4.3 inch touch screen, tilted 20 degrees
  • Library of 2100 drugs, extendable with your own entries
  • Ten working modes: rate, time, weight, interval, trapezoid, sequence, micro, TIVA, loading dose and night
  • Continuous titration: parameters change without stopping the infusion
  • A matrix of several processing units that watch one another
  • High performance stepper motor, with no pulse wave at low rates
  • Anti bolus: it releases the pressure automatically when obstruction occurs, with an audible and visual alarm
  • Dynamic pressure monitoring, with numeric and graphic readout
Learn more
ComenComen M500
Dual channel syringe pump

Comen M500

  • Folding 6.2 inch touch screen, tilting from 0 to 45 degrees
  • Two parallel channels, for several drugs at the same time
  • Cascade relay mode: up to 120 ml of continuous infusion of the same drug
  • Library of 2100 drugs, extendable with your own entries
  • Ten working modes: rate, time, weight, interval, trapezoid, sequence, micro, TIVA, loading dose and night
  • Continuous titration: parameters change without stopping the infusion
  • A matrix of several processing units that watch one another
  • Anti bolus and dynamic pressure monitoring, with numeric and graphic readout
Learn more
ComenComen K1
Patient transport monitor

Comen K1

  • 5.5 inch capacitive touchscreen with 1280 by 720 resolution
  • Battery for up to 10 hours of continuous operation
  • IP44 protection against dust and splashes
  • Seamless data handover to the K12 Pro, K15 Pro, K18 Pro and K22 Pro monitors
  • EWS, Glasgow, SepsisGuide and CCHD clinical support tools
Learn more
ComenComen C30
Emergency and transport monitor

Comen C30

  • Nine shortcut keys, designed for first aid and emergency work
  • Waterproof, flame retardant and drop resistant housing
  • High brightness screen readable in strong sunlight
  • Docks as a module into the C70 and C90 monitors when the patient is admitted
  • Trend review and ECG waveform review
Learn more

Need help choosing the right device?

Contact us
WhatsAppContact us
